THE INSTRUMENT

The Touch Screen display, architecture and fully menu driven ensure simplicity in use, trouble-free performance, cost effectiveness and reliability. Stored data can be viewed or downloaded to a computer. through an USB C port

FEATURES

  Measured parameters: Oxygen, & temperature. Optionally Four additional gases based on electrochemical sensors, and Two gases based on NDIR sensors OR One Pellistor and One NDIR sensor can also be incorporated. Please see table for optional gases and their ranges offered

  Stored parameters: Date, Time, Name of Company surveyed / Equipment / Sampling Point which is User Programmable and all selected parameters of each reading is data logged

  Data stored and can be downloaded to a computer for permanent storage and subsequently printed.

  Report Menu to View specific range of readings

  Calculated Parameters: Excess air, total efficiency and heat loss of 4 different types, among others.

  User programmable for three non-conventional fuels. (One each for solid, liquid & gaseous fuels)

  Rubber jacket provided for instrument.

  Data for twenty-eight standard fuels preprogrammed.

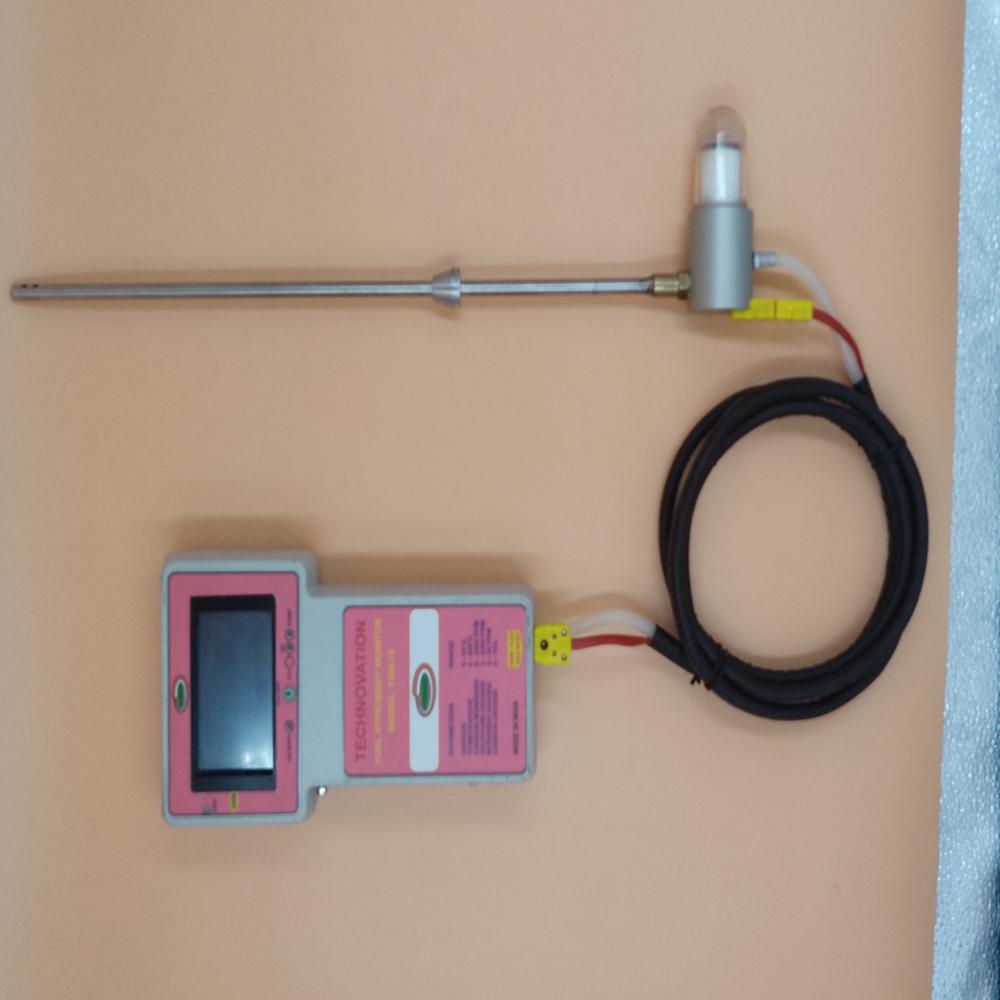

  Elegant Gas cum Temperature probe with integral filter and cooler. Molded hose of 1.5 m length.

  Auto and Manual sampling modes

  Auto Oxygen Calibration at start-up on request.

  Auto power OFF

APPLICATIONS

Measurement of exhaust gases of Boilers,

Furnaces, Heaters, Kilns in order to improve combustion efficiency and reduction of pollutant gases released by these devices

STANDARD SPECIFICATIONS

Display                  : 3.5 TFT Colored LCD with Touch Screen

Power                   : 3.7 V LiON rechargeable Battery

Low battery           : Indication provided.

In -Built Pump        : 6" Hg suction,0.7  LPM flow

Working Temp.     : 5 TO 45 C

Sensors                : Electrochemical. NDIR and pellistor options. Expected life for O2 is 2 yrs & EC is 3 yrs.

Size & Wt             : 23x13x4.5cm & 0.8 kg.

Temp. probe         : Thermocouple, K  type

Probe length         : 60 cm Copper Tube

Probe                    : Gas Cooler and filter integral

Data storage         : Upto 400 readings

Data output           : USB port.

Gases & Ranges   : Instrument supplied with Oxygen & temperature sensors, additional sensors available as per table below
