Fuel Gas Analyzer

Fuel Gas Monitor that we proposed is a compact size, and portable battery operated gas analyzer. This can measure percentage of Carbonmonoxide, & Oxygen, and the readings of that gases accurately display on 3 1/2 digit 12mm high LCD screen. A single copper tube type gas probe is combined with a filler. It comes with synthetic rubber hose, which connect this device to the instrument. It has rechargeable battery, which provides power backup to the instrument when required. The Fuel Gas Monitor is simple to operate, energy efficient, cost-effective, and requires less maintenance.

THE INSTRUMENT The Touch Screen display, architecture and fully menu driven ensure simplicity in use, trouble-free performance, cost effectiveness and reliability. Stored data can be viewed or downloaded to a computer. through an USB C port FEATURES Measured parameters: Oxygen, & temperature. Optionally Four additional gases based on electrochemical sensors, and Two gases based on NDIR sensors OR One Pellistor and One NDIR sensor can also be incorporated. Please see table for optional gases and their ranges offered Stored parameters: Date, Time, Name of Company surveyed / Equipment / Sampling Point which is User Programmable and all selected parameters of each reading is data logged Data stored and can be downloaded to a computer for permanent storage and subsequently printed. Report Menu to View specific range of readings Calculated Parameters: Excess air, total efficiency and heat loss of 4 different types, among others. User programmable for three non-conventional fuels. (One each for solid, liquid & gaseous fuels) Rubber jacket provided for instrument. Data for twenty-eight standard fuels preprogrammed. Elegant Gas cum Temperature probe with integral filter and cooler. Molded hose of 1.5 m length. Auto and Manual sampling modes Auto Oxygen Calibration at start-up on request. Auto power OFF

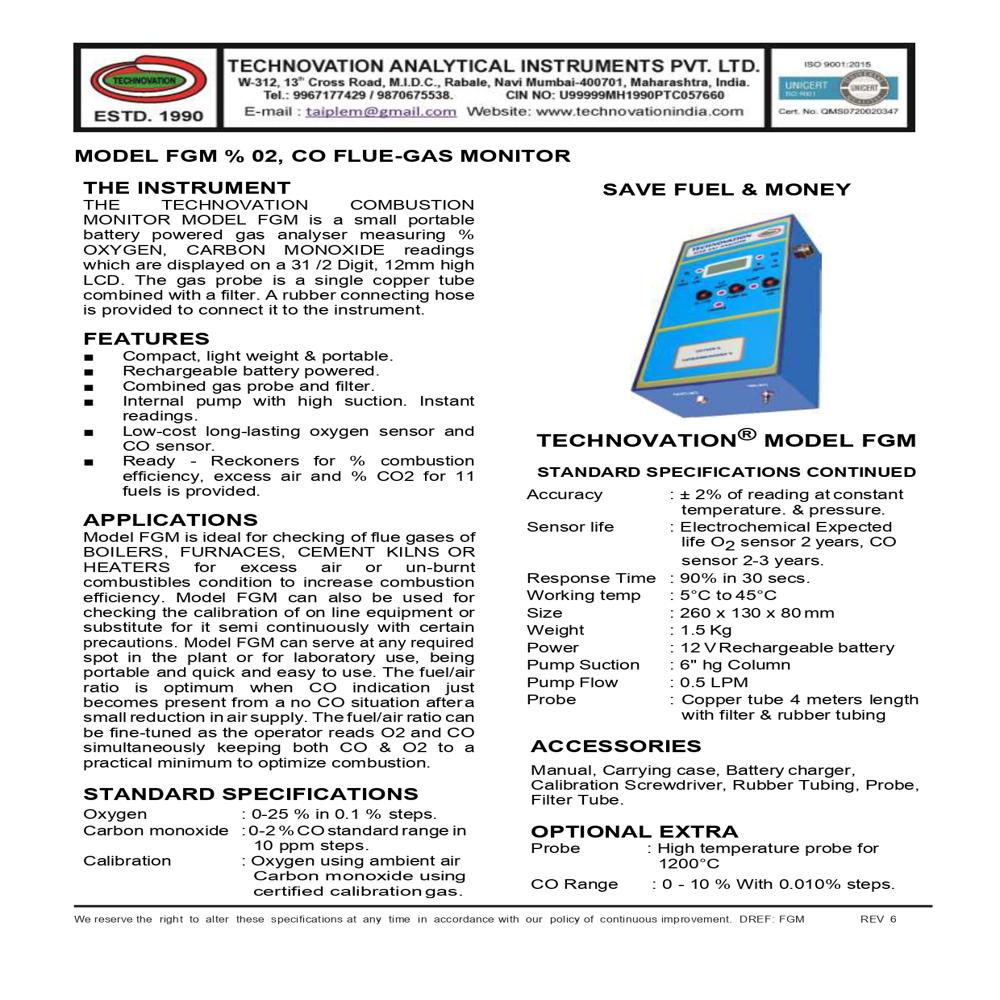

THE INSTRUMENT THE TECHNOVATION COMBUSTION MONITOR MODEL FGM is a small portable battery powered gas analyser measuring % OXYGEN, CARBON MONOXIDE readings which are displayed on a 31 /2 Digit, 12mm high LCD. The gas probe is a single copper tube combined with a filter. A rubber connecting hose is provided to connect it to the instrument. STANDARD SPECIFICATIONS Oxygen : 0-25 % in 0.1 % steps. Carbon monoxide : 0-2 % CO standard range in 10 ppm steps. Calibration : Oxygen using ambient air Carbon monoxide using certified calibration gas Accuracy : ï 2% of reading at constant temperature. & pressure. Sensor life : Electrochemical Expected life O2 sensor 2 years, CO sensor 2-3 years. Response Time : 90% in 30 secs. Working temp : 5C to 45C Size : 260 x 130 x 80 mm Weight : 1.5 Kg Power : 12 V Rechargeable battery Pump Suction : 6" hg Column Pump Flow : 0.5 LPM Probe : Copper tube 4 meters length with filter & rubber tubing
