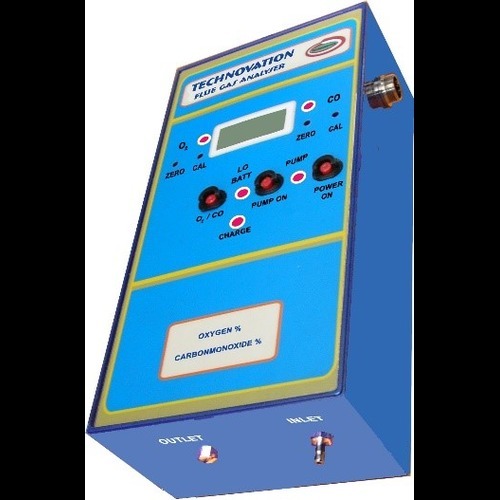

About MODEL FGM % 02, CO FLUE-GAS MONITOR

THE INSTRUMENT

THE TECHNOVATION COMBUSTIONMONITOR MODEL FGM is a small portable battery powered gas analyser measuring %OXYGEN, CARBON MONOXIDE readings which are displayed on a 31 /2 Digit, 12mmhigh LCD. The gas probe is a single copper tube combined with a filter. Arubber connecting hose is provided to connect it to the instrument.

FEATURES

Compact, light weight& portable.

Rechargeable batterypowered.

Combined gas probe andfilter.

Internal pump with highsuction. Instant readings.

Low-cost long-lastingoxygen sensor and CO sensor.

Ready - Reckoners for %combustion efficiency, excess air and % CO2 for 11 fuels is provided.

APPLICATIONS

ModelFGMisidealforcheckingoffluegasesof BOILERS, FURNACES, CEMENT KILNSORHEATERS for excess air or un-burnt combustibles condition to increasecombustion efficiency. Model FGM can also be used for checking the calibrationof on line equipment or substitute for it semi continuously with certain precautions.ModelFGMcanserveatanyrequiredspot in the plant or for laboratory use, being portableandquickandeasytouse.Thefuel/airratio is optimum when CO indication just becomes present from a no CO situationaftera smallreductioninairsupply.Thefuel/airratiocan be fine-tuned as the operator reads O2 and CO simultaneously keepingboth CO & O2 to a practical minimum to optimize combustion.

STANDARDSPECIFICATIONS

Oxygen                  :0-25 % in 0.1 %steps.

Carbon monoxide   : 0-2%COstandardrangein10 ppm steps.

Accuracy             2% of reading atconstanttemperature. & pressure.

Sensor life           :Electrochemical Expectedlife O2 sensor 2years,CO sensor 2-3 years.

Response Time   :90% in 30 secs.

Workingtemp      : 5C to45C

Size                     :260 x 130 x 80mm

Weight                 :1.5Kg

Power                  :12VRechargeablebattery

PumpSuction      : 6" hgColumn

PumpFlow          : 0.5LPM

Probe                   :Copper tube 4 meters length with filter & rubber tubing

ACCESSORIES

Manual, Carryingcase, Batterycharger, Calibration Screwdriver, Rubber Tubing, Probe, FilterTube.

OPTIONAL EXTRA

Probe             : High temperature probe for 1200C

CO Range       :0 - 10 % With 0.010% steps.
