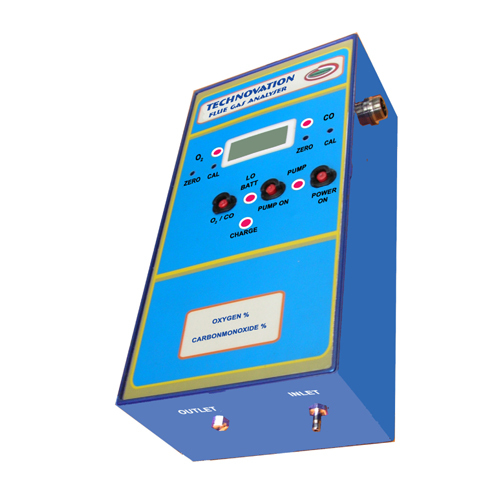

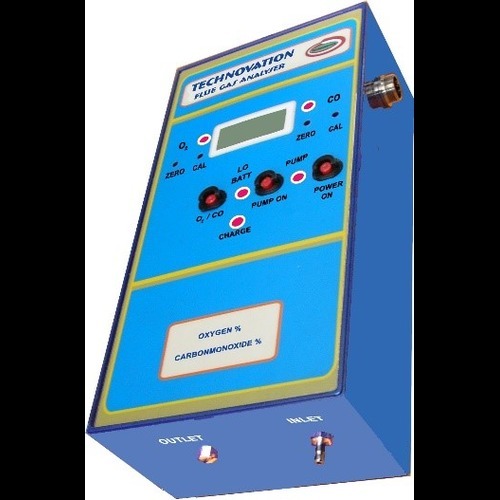

Flue Gas Analyser

Name: FEM - 7 PORTABLE FUEL EFFICIENCY MONITORS
Brand: Technovation Analytical Instruments Pvt. Ltd.
Price: 42000.0 INR
Availability: InStock

Price 169625.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Flue Gas Analyser Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Day

Delivery Time
7 Days

About Flue Gas Analyser

APPLICATION

Measurement of exhaust gases of Boilers,

Furnaces, Heaters, Kilns in order to improve combustion efficiency and reduction of pollutant gases released by these devices.

FEATURES

Measured parameters: Oxygen, & temperature. Optionally Four additional gases based on electrochemical sensors, and Two gases based on NDIR sensors OR One Pellistor and One NDIR sensor can also be incorporated. Please see table for optional gases and their ranges offered

Stored parameters: Date, Time, Name of Company surveyed / Equipment / Sampling Point which is User Programmable and all selected parameters of each reading is data logged

Data stored and can be downloaded to a computer for permanent storage and subsequently printed.

Report Menu to View specific range of readings

Calculated Parameters: Excess air, total efficiency and heat loss of 4 different types, among others.

User programmable for three non-conventional fuels. (One each for solid, liquid and gaseous fuels)

Data for twenty-eight standard fuels preprogrammed.

Elegant Gas cum Temperature probe with integral filter and cooler. Molded hose of 1.5 m length.

Auto and Manual sampling modes

Auto Oxygen Calibration at start-up on request.

Auto power OFF

STANDARD SPECIFICATIONS

Display :128 x 64 Graphic with Backlight

Power : 6 V NiMH rechargeable Battery

Low battery : Indication provided.

In -Built Pump : 8" Hg suction, 1 liter/min flow

Sensors : Electrochemical. NDIR and pelllistor options. Expected life for O2 is 2 yrs & EC is 3 yrs.

Size & Wt : 26 x 14 x 10 cm x 1.8 kg. Working Temp. : 5 TO 45 C

Temp. probe : Thermocouple, K type

Probe length : 45 cm (Approx) Copper Tube

Probe : Gas Cooler and filter integral

Data storage : Upto 400 readings Data output : USB port.

Gases & Ranges : Instrument supplied with Oxygen & temperature sensors, additional sensors available as per table below.

Reliable Fuel Efficiency Tracking

Engineered for industrial use, the FEM - 7 Portable Fuel Efficiency Monitor provides accurate, real-time fuel usage insights. Its robust mild steel construction and integrated alarm system ensure longevity and dependable performance in demanding settings.

Designed for Industrial Performance

Compact dimensions and lightweight design support effortless mobility and installation. The blue color display offers improved visibility, while the 50 Hz frequency rating ensures stable operation suited to various industrial requirements.

FAQ's of FEM - 7 PORTABLE FUEL EFFICIENCY MONITORS:

Q: How does the FEM - 7 monitor fuel efficiency in industrial applications?

A: The FEM - 7 uses advanced sensors to measure and display real-time fuel usage, helping operators optimize consumption and improve efficiency in industrial settings.

Q: What are the main benefits of using the FEM - 7 Portable Fuel Efficiency Monitor?

A: This device helps reduce operational costs through accurate fuel monitoring, features an alarm for critical alerts, and is portable for flexible usage across different industrial locations.

Q: When should the alarm feature be used during industrial processes?

A: The integrated alarm activates when fuel efficiency deviates from set parameters, alerting operators to address issues promptly for safer and more efficient operation.

Q: Where is the FEM - 7 monitor manufactured and supplied from?

A: The FEM - 7 is manufactured, supplied, and exported by companies based in India, ensuring international availability and reliable sourcing.

Q: What is the recommended usage process for installing and operating the FEM - 7 monitor?

A: Mount the monitor in a suitable location using its compact form factor, connect to the industrial fuel system, and power on. Monitor readings via the color display, responding to alarms as needed for optimal results.

Q: Can the FEM - 7 monitor withstand demanding industrial conditions?

A: Yes, constructed from durable mild steel and equipped with a 1-year warranty, the monitor is engineered to operate reliably in rigorous industrial environments.
