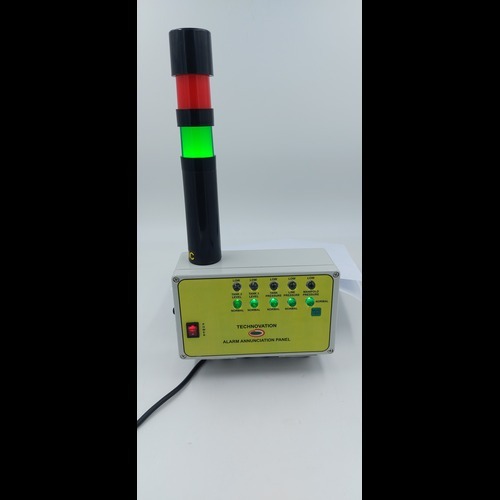

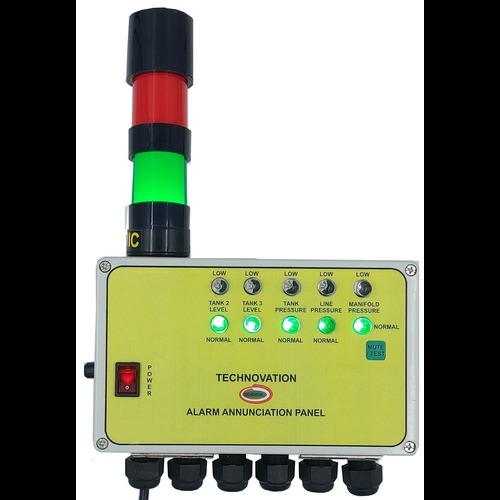

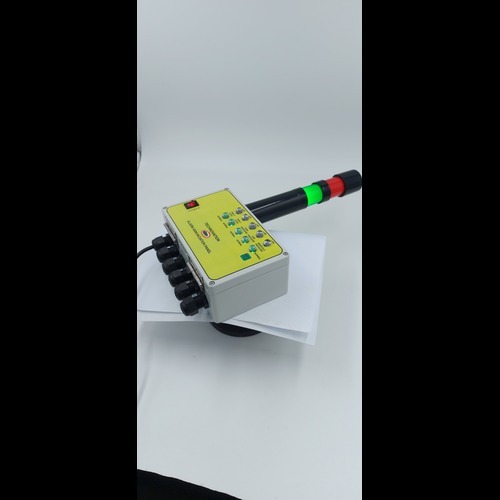

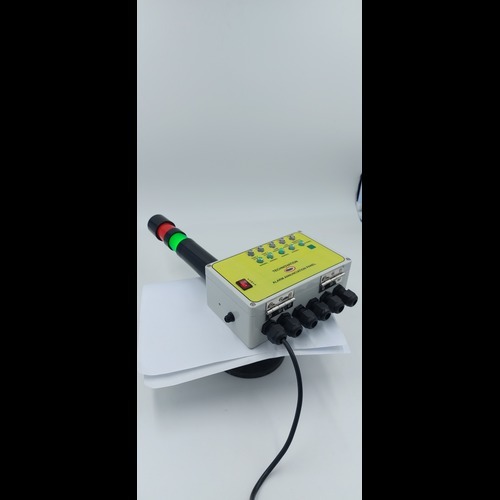

About MODEL 5CS - 5 CHANNEL ANNUNCIATOR PANEL WITH TOWER LAMP

THE INSTRUMENT

Model 5CS is a unique instrument which monitors up to five  pairs of switches closure status simultaneously  . it displays the status on large Red and Green LEDs dedicated to each channel . It provides two alarm sand one Fault alarm with corresponding relay contacts. A bi-color Tower Lamp is connected for area annunciation visibility of status. Sensors or switches are user provided.

FEATURES

5 Channel ,switch open or closed detection

 24 VDC o/p fordetection  of switch                                   closure toeach channel

Wall mounted MS ABSenclosure

    External Acknowledgekey facility provided,

APPLICATIONS

Used to connect to any open/close or on off switch type sensor / transmitter for providing display of switch contact  and also provide  common tower lamp indication and buzzer for audio,

Can be used for level, gate open/ close, wash bath tap status , line pressure limits etc.

STANDARD SPECIFICATIONS

Channels                :Up to five

Display                   : 5-digitLED 10mm RED and Green per channel

Power                     :110 to 220VAC 50 Hz 1A

Power Supply         : 24 VDC to external switched

Current out             : Current limited for protection

Box Size                 :200x115x70 mm

Weight                    :2.0 Kg

IP rating                  :IP54

Mains cord             :Provided

Tower lamp out available        :Connections for 2 lights (Red, Yellow & Green) and buzzer
