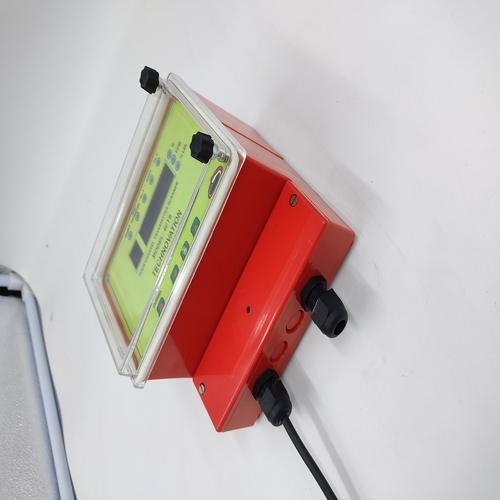

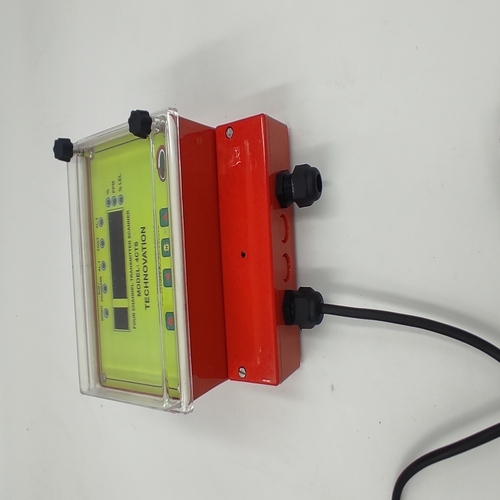

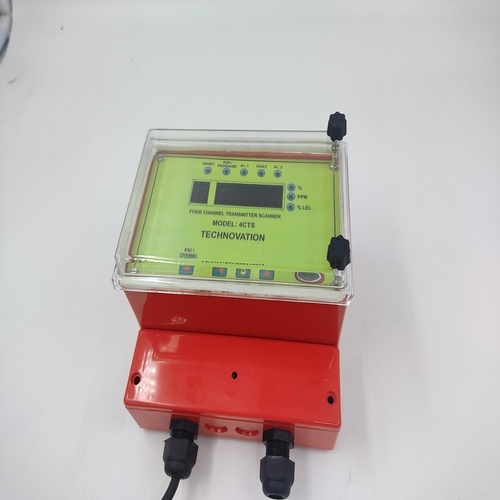

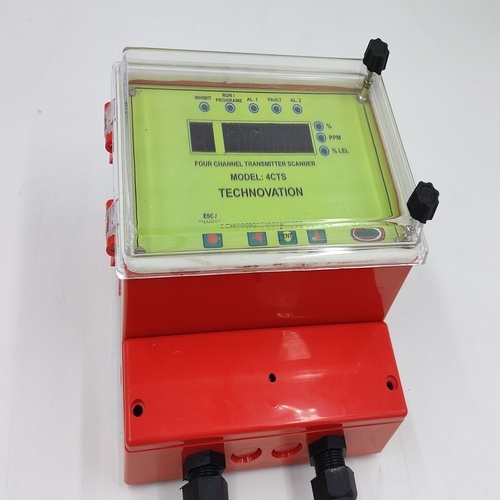

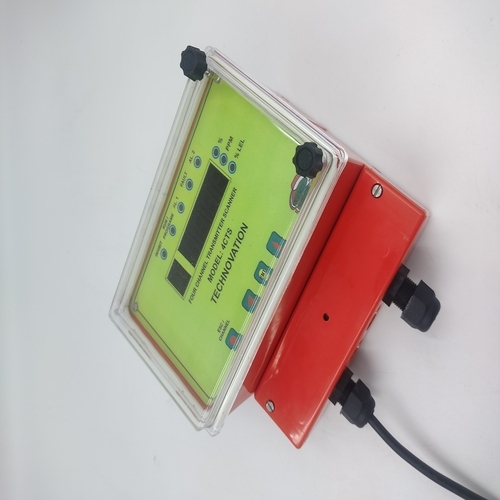

About MODEL-4CTS-4 CHANNEL 4-20mA Input SCANNER DISPLAY

THE INSTRUMENT

Model4CTS is a unique instrument which accepts up to four, 4-20mA signals from threewire transmitters or sensors. It allows scaling of the display from a largevariety of ranges and resolutions as permitted by the 4 digit LED display. Itdisplays a scaled parameter reading and channel number and units. It providestwo alarms and one Fault alarm with corresponding relay contacts. A Tower Lampcan be connected for area annunciation visibility of status. Sensors are userprovided.

FEATURES

Channel, Parameter Value, Units, Alarm Status sequentially scanned & displayed

4 Key easy operation for all settings

Accepts a 4-20mA input signal

24VDC 0.25mA to each channel

Wall mounted ABS Enclosure with transparent door.

Modbus (RTU) for communication.

User settable Alarmsfor threshold, Activation point , Delay, Hysteresis, and Fail safe mode ,Latching/ auto-reset

Fault alarm can beconfigured for failsafe

Usercan calibrate or scale input as well as output current.

Confidence flash provided

External Acknowledgefacility provided,

APPLICATIONS

Usedto connect to any 4-20mA two or three wire industry standard transmitter forproviding Display of Parameter Values and also provide  full Alarm indication and potential freerelay contacts. Either NO-C or NC- C user selectable

STANDARD SPECIFICATIONS

Channels           : Up to four

Display             : 4 digit LED 10mm high

Ranges             : 0-2 , 0-5, 0-10, 0-20, 0-25, 0- 0 - 50,  0 -100, 0 - 200, 0  - 500,0 - 1000, 0 - 1500, 0  - 1000, 0  2000.

Resolution        : No DP, 000.0,  00.00, 0.000

Linearity            : +0.5 %

Power  :110 to 220VAC 50 Hz  1 A

Power Supply   : 24VDC to transmitter

Current out       :Maximum 250mA  per sensor

Input Load        :100 Ohms resistance

Alarm                :Two visual alarms, user settable throughout the range

Alarm Relay      :One C-NO OR  C-NC contact of 50VA ratingprovided for each set-point

Working Temp    :0 to 45C

MOC                  :ABS with transparent cover

Size                    :160x 160 x 130 mm deep

Weight                :800 gms

IP rating              :IP54

Communication   : Forconnection to RS485 Modbus RTU PLC /SCADA

Tower lamp     :3 lights ( Red , Yellow & Green)  andbuzzer.
