Air Sampler

Air Samplers offered by us are admired in the industry for compact design, robust construction, energy efficiency and high functional value. Our range of air samplers are manufactured for qualitative sampling of mists, dusts, fumes and variety of airborne particles. Our products are not only cost-effective but also meet every quality standard prescribed by the respective market. The air samplers are instilled with DC driven pump motor, rechargeable battery and charging indicators. The important thing to note in our air samplers is 8 hours operational service life in single charge, which makes it highly demanding and productive in the marketplace.

(MODEL 5CS )

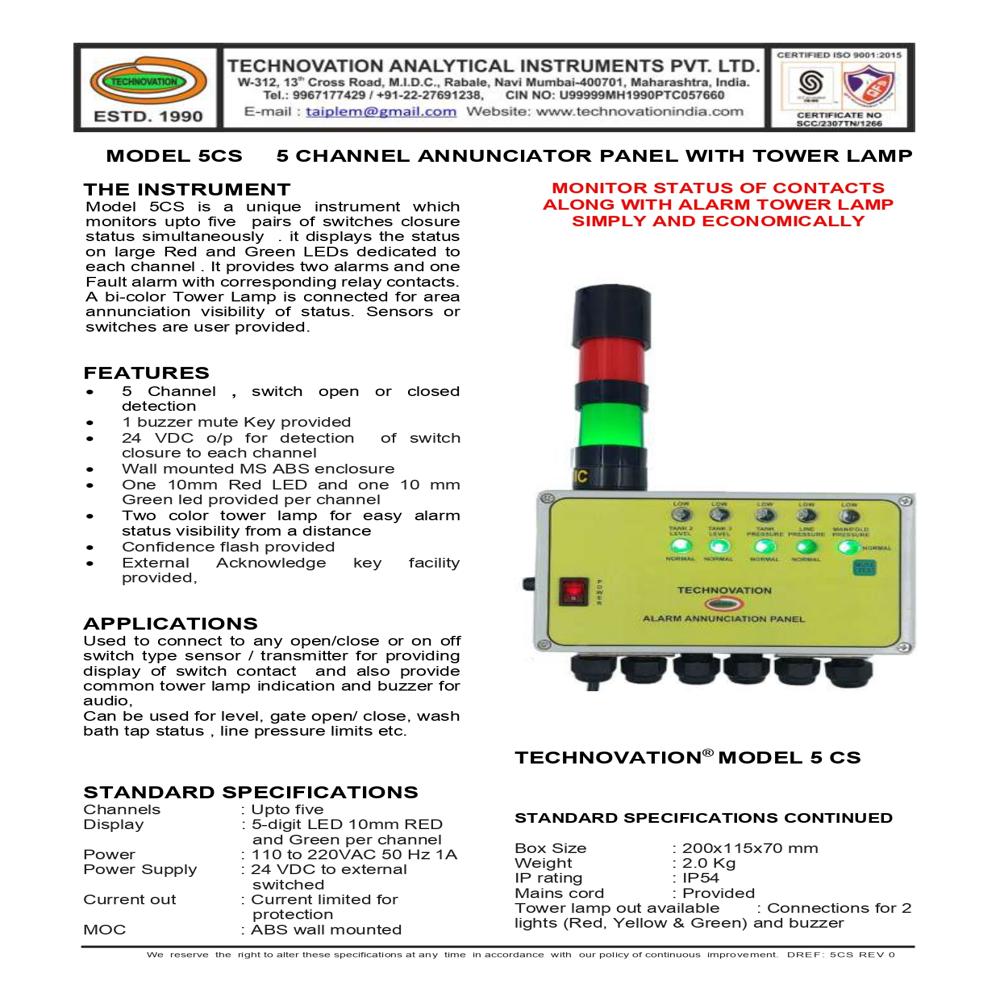

MODEL 5CS - 5 CHANNEL ANNUNCIATOR PANEL WITH TOWER LAMP

Price: 8000 INR/Piece

THE INSTRUMENT Model 5CS is a unique instrument which monitors upto five pairs of switches closure status simultaneously . it displays the status on large Red and Green LEDs dedicated to each channel . It provides two alarms and one Fault alarm with corresponding relay contacts. A bi-color Tower Lamp is connected for area annunciation visibility of status. Sensors or switches are user provided STANDARD SPECIFICATIONS Channels : Upto five Display : 5-digit LED 10mm RED and Green per channel Power : 110 to 220VAC 50 Hz 1A Power Supply : 24 VDC to external switched Current out : Current limited for protection MOC : ABS wall mounted Box Size : 200x115x70 mm Weight : 2.0 Kg IP rating : IP54 Mains cord : Provided Tower lamp out available : Connections for 2 lights (Red, Yellow & Green) and buzzer

Send Inquiry

Request To Call Back

(Model 4CTS)

MODEL-4CTS-4 CHANNEL 4-20mA Input SCANNER DISPLAY

Price: 15200 INR/Piece

Model 4CTS is a unique instrument which accepts upto four, 4-20mA signals from three wire transmitters or sensors. It allows scaling of the display from a large variety of ranges and resolutions as permitted by the 4 digit LED display. It displays a scaled parameter reading and channel number and units. It provides two alarms and one Fault alarm with corresponding relay contacts. A Tower Lamp can be connected for area annunciation visibility of status. Sensors are user provided. STANDARD SPECIFICATIONS Channels : Upto four Display : 4 digit LED 10mm high Ranges : 0-2 , 0-5, 0-10, 0-20, 0-25, 0- 0 - 50, 0 -100, 0 - 200, 0 - 500, 0 - 1000, 0 - 1500, 0 - 1000, 0 ï 2000. Resolution : No DP, 000.0, 00.00, 0.000 Linearity : +0.5 % Power : 110 to 220VAC 50 Hz 1 A Power Supply : 24 VDC to transmitter Current out : Maximum 250mA per sensor Input Load : 100 Ohms resistance Alarm : Two visual alarms, user settable throughout the range Alarm Relay : One C-NO OR C-NC contact of 50VA rating provided for each set-point Working Temp : 0 to 45C MOC : ABS with transparent cover Size :160 x 160 x 130 mm deep Weight : 800 gms IP rating : IP54 Communication : For connection to RS485 Modbus RTU PLC /SCADA Tower lamp : 3 lights ( Red , Yellow & Green) and buzzer.
