5CS 5 CHANNEL ANNUNCIATOR PANEL WITH TOWER LAMP

Send Inquiry

Request To Call Back

5CS 5 CHANNEL ANNUNCIATOR PANEL WITH TOWER LAMP

Name: 5CS 5 CHANNEL ANNUNCIATOR PANEL WITH TOWER LAMP
Brand: Technovation Analytical Instruments Pvt. Ltd.
Price: 9200.0 INR
Availability: InStock

Price 9200.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

5CS 5 CHANNEL ANNUNCIATOR PANEL WITH TOWER LAMP Specification

Features
Good Quality

IP Rating
IP54

Material
MS

Usage
industrial

Warranty
1 year

Rated Voltage
110-215 Volt (V)

Usage & Applications
Industrial

Frequency
50-60 Hertz (HZ)

5CS 5 CHANNEL ANNUNCIATOR PANEL WITH TOWER LAMP Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
2 Pieces Per Day

Delivery Time
7 Days

About 5CS 5 CHANNEL ANNUNCIATOR PANEL WITH TOWER LAMP

Elevate your industrial safety with the ineffable 5CS 5 Channel Annunciator Panel with Tower Lamp. Designed for robust plant monitoring, this gorgeous unit supervises up to five switch inputs, vividly displaying real-time status with unbeatable clarity using dedicated Red and Green LEDs. The bi-color tower lamp ensures unmistakable area annunciation. Crafted from mild steel and finished in pristine white, it brings durability and excellence to demanding environments. Order today-stock is ending soon! Get it now from India's trusted exporter, manufacturer, and supplier with a full 1-year warranty.

Ideal for Diverse Industrial Applications

The 5CS 5 Channel Annunciator Panel with Tower Lamp is the preferred solution in environments like power plants, processing facilities, water treatment units, and manufacturing sites. It is expertly engineered for plant applications requiring vigilant switch or sensor monitoring. This panel facilitates comprehensive site security and streamlined operations, making it indispensable for monitoring level, gate open/close status, tap positions, and line pressure across critical industrial premises.

Swift Dispatching and Outstanding Market Value

Sample units of the 5CS Annunciator Panel are available to help you evaluate its quality and performance prior to bulk orders. Products are ready for rapid dispatching from our designated FOB port, ensuring timely delivery to your site. With strong presence in major domestic markets, this instrument guarantees exceptional market value, reliability, and compliance. Rely on our seamless logistics and responsive service to meet all your industrial annunciator needs.

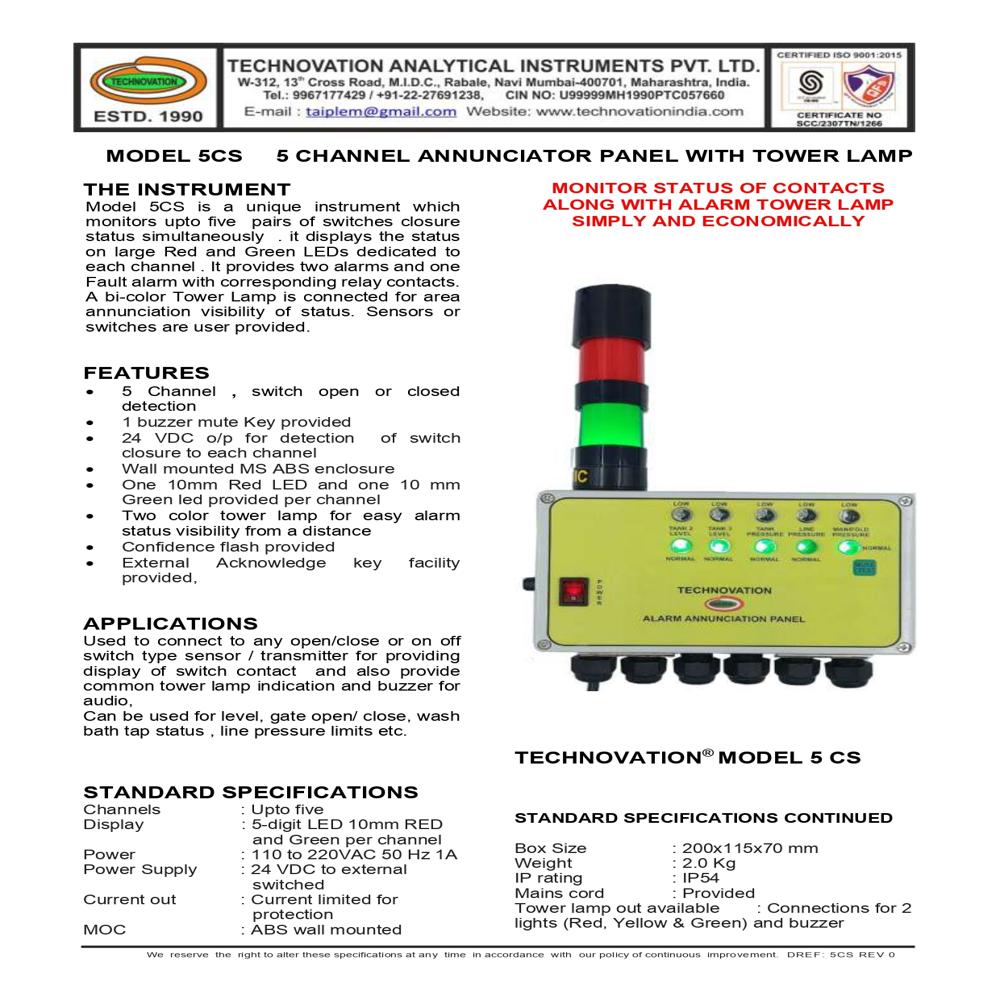

THE INSTRUMENT

Model 5CS is a unique instrument which monitors upto five pairs of switches closure status simultaneously . it displays the status on large Red and Green LEDs dedicated to each channel . It provides two alarms and one Fault alarm with corresponding relay contacts. A bi-color Tower Lamp is connected for area annunciation visibility of status. Sensors or switches are user provided.

FEATURES

5 Channel , switch open or closed detection

1 buzzer mute Key provided

24 VDC o/p for detection of switch closure to each channel

Wall mounted MS ABS enclosure

One 10mm Red LED and one 10 mm Green led provided per channel

Two color tower lamp for easy alarm status visibility from a distance

Confidence flash provided

External Acknowledge key facility provided,

APPLICATIONS

Used to connect to any open/close or on off switch type sensor / transmitter for providing display of switch contact and also provide common tower lamp indication and buzzer for audio,

Can be used for level, gate open/ close, wash bath tap status , line pressure limits etc.

STANDARD SPECIFICATIONS

Channels : Upto five

Display : 5-digit LED 10mm RED and Green per channel

Power : 110 to 220VAC 50 Hz 1A

Power Supply : 24 VDC to external switched

Current out : Current limited for protection

MOC : ABS wall mounted

Box Size : 200x115x70 mm

Weight : 2.0 Kg

IP rating : IP54

Mains cord : Provided

Tower lamp out available : Connections for 2 lights (Red, Yellow & Green) and buzzer

FAQ's of 5CS 5 CHANNEL ANNUNCIATOR PANEL WITH TOWER LAMP:

Q: How does the 5CS 5 Channel Annunciator Panel operate in industrial applications?

A: The 5CS panel continuously monitors up to five channels, indicating the open or closed status of each connected switch via dedicated LED displays and a tower lamp for visible alerts in plant environments.

Q: What are the benefits of using a tower lamp with the annunciator panel?

A: The tower lamp provides quick visual identification of alarm and normal statuses from a distance, improving on-site awareness and response in noisy or expansive industrial spaces.

Q: Where can this annunciator panel be installed?

A: It is ideal for installation in plants, factories, water treatment units, and any industrial site requiring reliable status indication for switches or sensor contacts.

Q: When is a sample of the 5CS panel available for evaluation?

A: Sample units can be dispatched on request, allowing you to test performance and suitability before making a larger investment.

Q: What process is involved in ordering and delivery?

A: Simply place your order through our sales channel. Once confirmed, we ensure prompt dispatch from our FOB port, enabling secure and timely delivery to your location.

Q: What is the main usage of this product in plant operations?

A: It is primarily used for monitoring and alerting about switch contacts-such as level sensors, gate positions, and line pressure limits-ensuring operational safety and efficiency.
