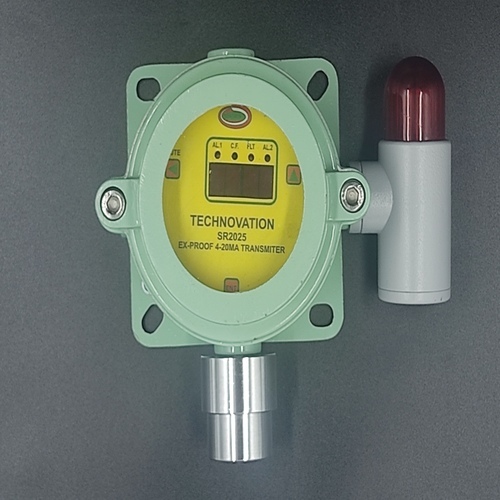

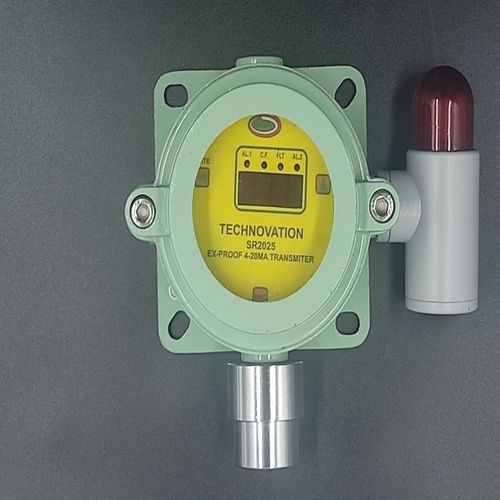

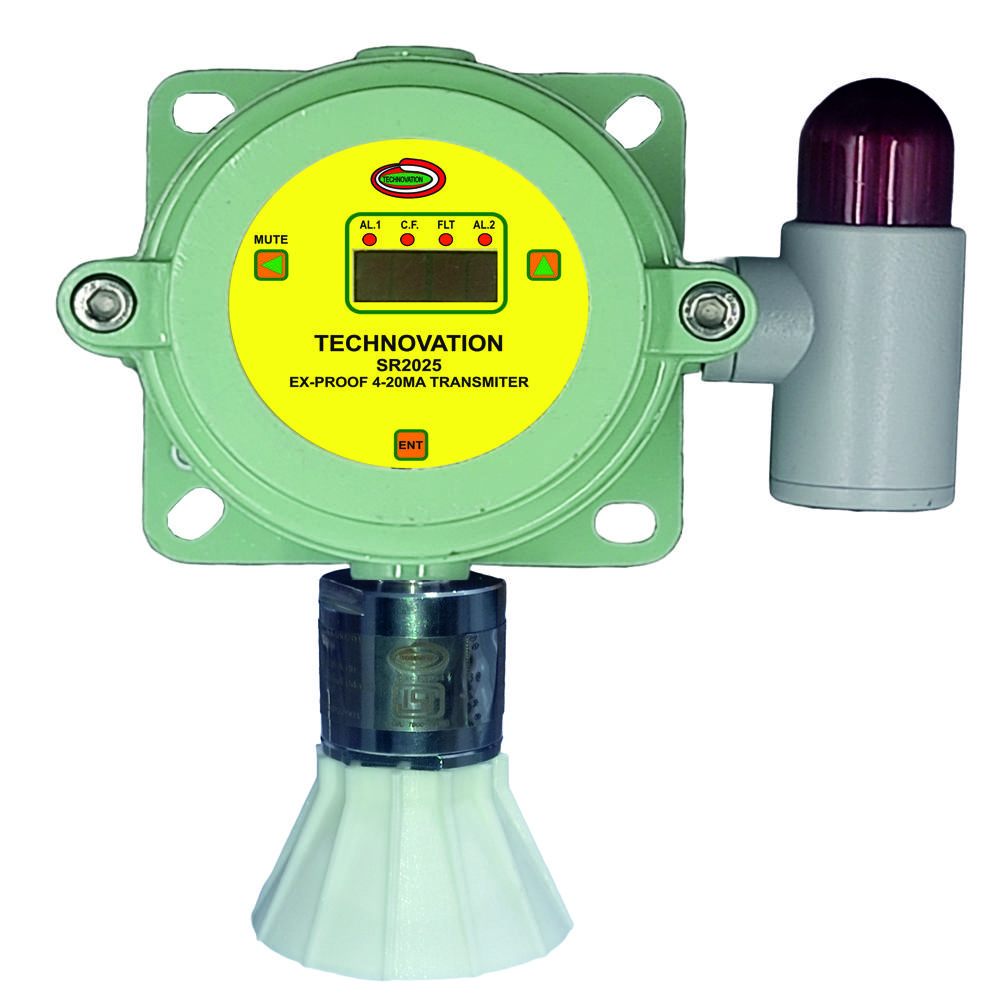

THE INSTRUMENT

These Single Point Wall Mounted Instruments work on 18-24VDC and have a PESO certified Ex proof sensor housing fitted on an Ex-proof Junction box. They use an IP 55 enclosure for the electronics as standard. They are provided with two alarms both audible and visual along with relays and output of 420 mA. They are meant for continuous operation of area monitoring with continuous read out, plus vital status indicators

FEATURES

Type of sensors that can be connected are Electrochemical, NDIR, Pellistor, and Thermal conductivity depending on gas and application.

APPLICATIONS

Used in Hazardous areas for Group IIA, IIB or Group IIC gases. Zone 1 and Zone 2 for gas sensing with appropriate sensor in conjunction with the necessary FLP enclosures for instrumentation or wiring, for detection of toxic or flammable gases in work places or enclosed spaces for safety. Measurement of Hydrogen in battery rooms .

CERTIFICATIONS

Ex db IIC T6 Gb (0CTa+55C) FOR ZONE 1 & 2 GAS GROUP IIC

ASSOCIATED STANDARDS: IS/IEC 60079-0:2017 & IS/IEC 60079-1:2014

BIS : 7800109425

PESO : A/P/HQ/MH/10EX4/7654 (P564213)

TE REPORT No: KLPL/Ex/19-082X ISSUE 1 DT: 04-03-2023

STANDARD SPECIFICATIONS

Display : 31/2-digit LED, 12 mm high

Sensor : Electrochemical type, expectedlife over 24 months. NDIR, TC, Pellistor

Working Temp : 0-45 C

Accuracy : + 5% at constant temp.

Overall size : 150 x 150 x 120 mm deep

Output : 4-20 mA ( Max load 470 Ohms)

Relay Ratings : 50VA resistive load

Power Supply : 18-24 VDC specify while ordering

InstrumentCase : lP67 Aluminum Ex-Proof enclosure

SensorHousing : PESO approved Ex-proof

Gas& Range : Any one as in TableBelow, to be specified while ordering.

Calibration : By Calibration gas or Sensor O/P
