4 - 20 mA Two WIRE (Flame Proof) TRANSMITTER

Send Inquiry

Request To Call Back

4 - 20 mA Two WIRE (Flame Proof) TRANSMITTER

Price 14400.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

4 - 20 mA Two WIRE (Flame Proof) TRANSMITTER Specification

Application
Industrial

Product Type
4 - 20 mA THREE WIRE FLP TRANSMITTER

Usage
Industrial

Voltage
220 Volt (v)

Usage & Applications
Industrial

Warranty
1 Year

Display Type
Digital

Material
Metal

Frequency
50 Hertz (HZ)

Features
Good Quality

4 - 20 mA Two WIRE (Flame Proof) TRANSMITTER Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
5 Units Per Day

Delivery Time
7 Days

About 4 - 20 mA Two WIRE (Flame Proof) TRANSMITTER

Jump on this monumental opportunity with our 4-20 mA Two Wire Flame Proof Transmitter, designed for industrial use where precision and protection are paramount. Its imposing Ex-proof metallic body and digital display enable reliable measurement, while versatile features like pre-calibrated sensing and robust immunity to industrial noise make it a breathtaking addition to your fleet. Avail advance purchase discounts and markdowns-crafted by a leading exporter, manufacturer, and supplier from India. Backed by a 1-year warranty, this transmitter sets new standards in safety and performance.

Industrial Applications and Usage Type

The 4-20 mA Two Wire (Flame Proof) Transmitter is widely used in monumental industrial settings to monitor gases and process parameters. Its robust metal construction and Ex-proof housing ensure operational safety in hazardous areas. Used as a key instrument across manufacturing facilities, refineries, and chemical plants, this transmitter excels in industrial usage, boasting reliable performance with various application media, including air and industrial gases, while fitting seamlessly into PLCs and data acquisition systems.

Supply Ability, Packaging, and Terms of Delivery

Our breathtaking transmitters are produced with unwavering supply ability, catering to bulk industrial demands. Each unit is expertly packaged to safeguard against transit damage, ensuring the product is delivered seamlessly to your site. Express Shipping is offered for urgent requirements, and straightforward payment terms facilitate smooth order completion. Every shipment is managed for prompt delivery, reinforcing reliability from order placement through to installation at your industrial facility.

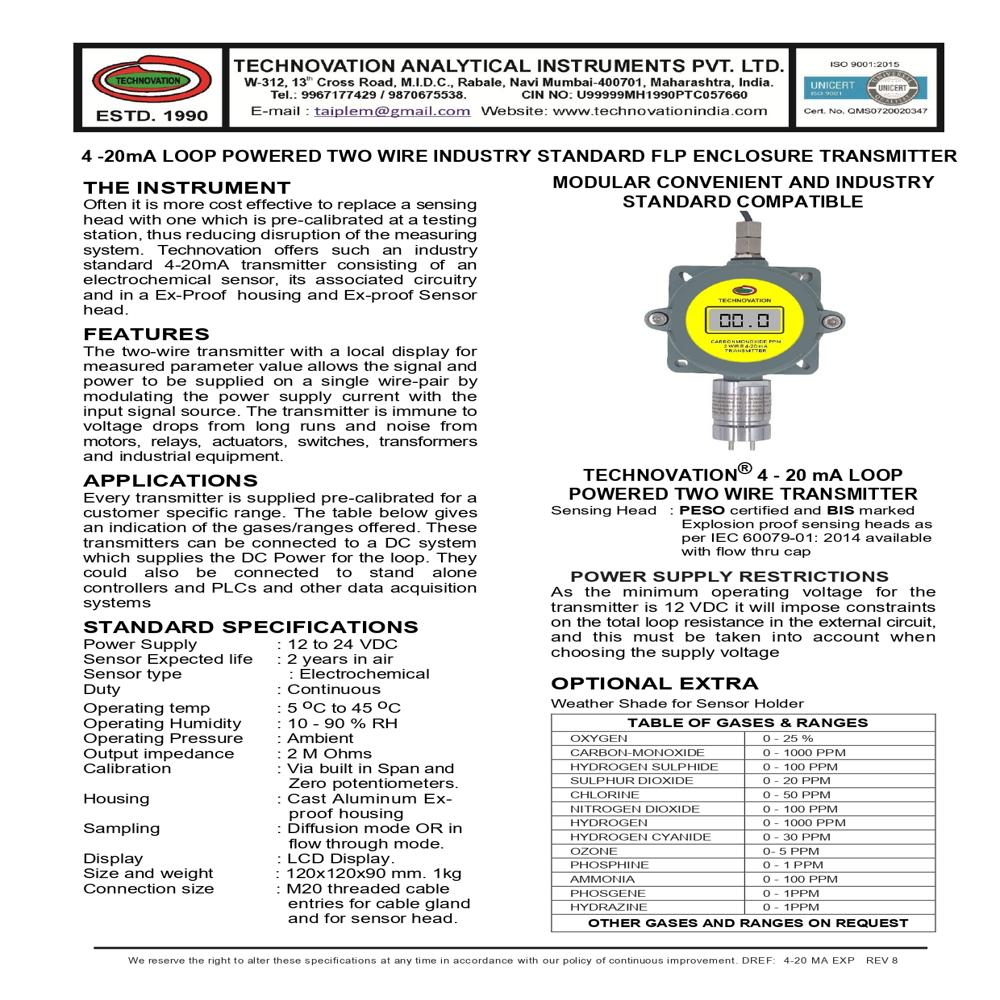

THE INSTRUMENT

Often it is more cost effective to replace a sensing head with one which is pre-calibrated at a testing station, thus reducing disruption of the measuring system. Technovation offers such an industry standard 4-20mA transmitter consisting of an electrochemical sensor, its associated circuitry and in a Ex-Proof housing and Ex-proof Sensor head.

FEATURES

The two-wire transmitter with a local display for measured parameter value allows the signal and power to be supplied on a single wire-pair by modulating the power supply current with the input signal source. The transmitter is immune to voltage drops from long runs and noise from motors, relays, actuators, switches, transformers and industrial equipment.

APPLICATIONS

Every transmitter is supplied pre-calibrated for a customer specific range. The table below gives an indication of the gases/ranges offered. These transmitters can be connected to a DC system which supplies the DC Power for the loop. They could also be connected to stand alone controllers and PLCs and other data acquisition systems

STANDARD SPECIFICATIONS

Power Supply : 12 to 24 VDC

Sensor Expected life : 2 years in air

Sensor type : Electrochemical

Duty : Continuous

Operating temp : 5 oC to 45 oC

Operating Humidity : 10 - 90 % RH

Operating Pressure : Ambient

Output impedance : 2 M Ohms

Calibration : Via built in Span and Zero potentiometers.

Housing : Cast Aluminum Ex-proof housing

Sampling : Diffusion mode OR in flow through mode.

Display : LCD Display.

Size and weight : 120x120x90 mm. 1kg

Connection size : M20 threaded cable entries for cable gland and for sensor head.

As the minimum operating voltage for the transmitter is 12 VDC it will impose constraints on the total loop resistance in the external circuit, and this must be taken into account when choosing the supply voltage

FAQ's of 4 - 20 mA Two WIRE (Flame Proof) TRANSMITTER:

Q: How does the 4-20 mA Two Wire Flame Proof Transmitter improve industrial safety?

A: The transmitter ensures monumental safety by featuring Ex-proof housing, robust metal construction, and reliable operation even in demanding environments, protecting both personnel and equipment from hazardous gases and ignitions.

Q: What applications and industries benefit most from this transmitter?

A: Used predominantly in industrial automation, chemical processing, and manufacturing facilities, this transmitter is ideal for any setting requiring continuous, accurate monitoring of gases or process parameters under flame-proof conditions.

Q: When should I consider advance purchase or markdown offers?

A: Advance purchase is recommended when you anticipate bulk requirements, enabling you to benefit from markdown offers and ensuring you have uninterrupted supply for planned installations or maintenance schedules.

Q: Where can this transmitter be installed within an industrial facility?

A: Thanks to its imposing yet compact build and Ex-proof certification, it can be installed in hazardous zones, control rooms, or directly on process lines-wherever monitoring of toxic or flammable gases is required.

Q: What is the order process and delivery timeline?

A: Place your order with our manufacturer or supplier; express shipping options are available. Once your order is completed and payment terms agreed upon, your transmitter will be delivered promptly and securely, ready for immediate installation.

Q: How is the device calibrated and maintained?

A: Each transmitter arrives pre-calibrated for your chosen measurement range, further adjustable on-site using built-in span and zero potentiometers for hassle-free maintenance and reliable long-term operation.
