Sr 2012 Portable Biogas Analyser

Price 109250.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Sr 2012 Portable Biogas Analyser Specification

Weight
2 Kilograms (kg)

Product Type
Multigas Analyser

Interface Type
RS232 / USB (as available)

Port Size
Standard

Features
Portable, Lightweight, Multi-gas capability, Alarm function

Power Supply
Battery 6V

Application
Field Detection, Industrial Gas Measurement

Number of Specimens
Multi-point measurement

Mounting Type
Handheld

Gas Pressure
Atmospheric or as per test

Display Type
Digital LCD

Automation Grade
Semi-Automatic

Temperature
0~50C

Specimen Size
Standard Inlet

Equipment Type
Portable Multigas Analyser

Resolution
0.01

Test Range
Customizable depending on gases

Response Time
30 seconds

Dimension (L*W*H)
220*160*110 Millimeter (mm)

Humidity
0-99% RH

Operating Voltage
6V

Measuring Range
Multiple gases (CO2, CO, O2, CH4, etc.)

Accuracy
2% F.S.

Usage
Gas Analysis, Environmental Monitoring

Machine Weight
2 Kilograms (kg)

Control Mode
Manual / Automatic

Sr 2012 Portable Biogas Analyser Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces, Piece Per Month

Delivery Time
7 Days

Main Domestic Market
All India

Certifications
Available

About Sr 2012 Portable Biogas Analyser

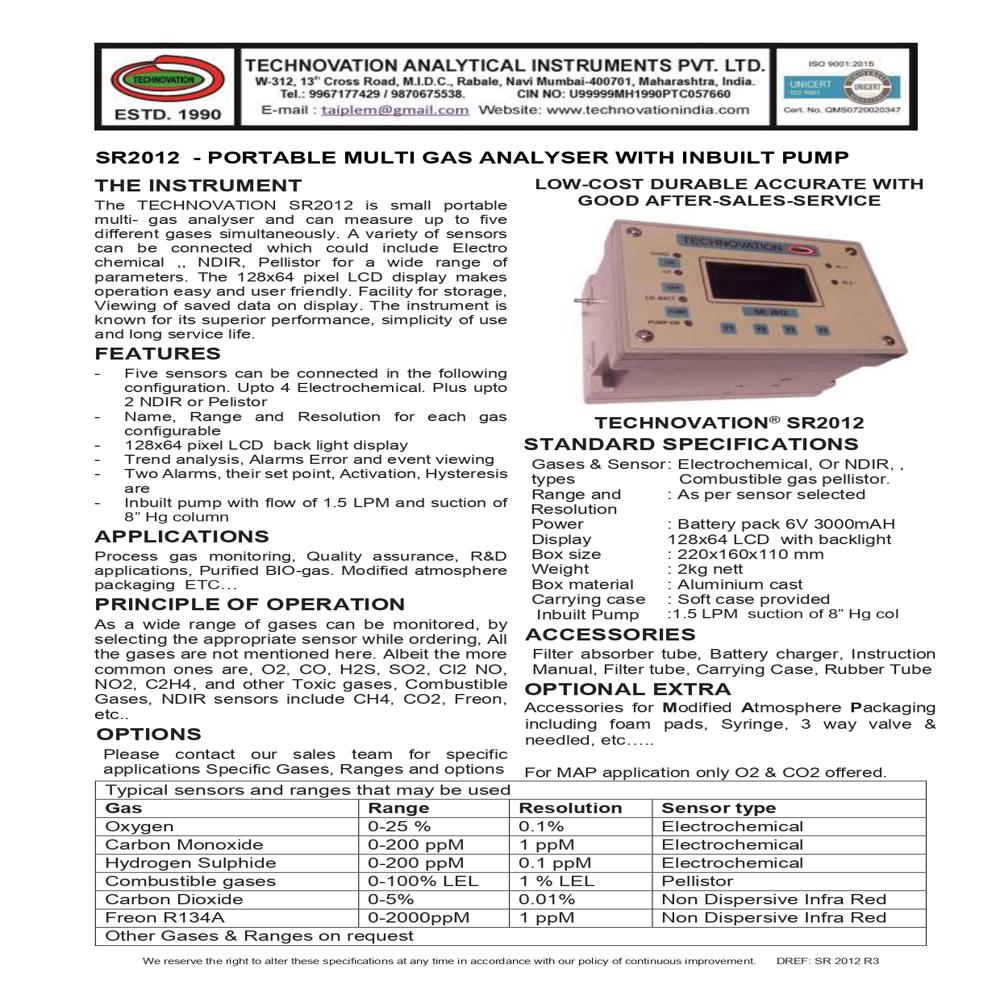

THE INSTRUMENT

The TECHNOVATlON SR2012 is small portable multi- gas analyser and can measure up to five different gases simultaneously. A variety of sensors can be connected which could include Electro chemical ,, NDIR, Pellistor for a wide range of parameters. The 128x64 pixel LCD display makes operation easy and user friendly. Facility for storage, Viewing of saved data on display. The instrument is known for its superior performance, simplicity of use and long service life.

FEATURES

- Five sensors can be connected in the following configuration. Upto 4 Electrochemical. Plus upto 2 NDIR or Pelistor

- Name, Range and Resolution for each gas configurable

- 128x64 pixel LCD back light display

- Trend analysis, Alarms Error and event viewing

- Two Alarms, their set point, Activation, Hysteresis are

- Inbuilt pump with flow of 1.5 LPM and suction of 8 Hg column

APPLICATIONS

Process gas monitoring, Quality assurance, R&D applications, Purified BIO-gas. Modified atmosphere packaging ETC

PRINCIPLE OF OPERATION

As a wide range of gases can be monitored, by selecting the appropriate sensor while ordering, All the gases are not mentioned here. Albeit the more common ones are, O2, CO, H2S, SO2, Cl2 NO, NO2, C2H4, and other Toxic gases, Combustible Gases, NDIR sensors include CH4, CO2, Freon, etc..

STANDARD SPECIFICATIONS

Gases & Sensor types	: Electrochemical, Or NDIR, , Combustible gas pellistor.
Range and Resolution	: As per sensor selected
Power	: Battery pack 6V 3000mAH
Display	128x64 LCD with backlight
Box size	: 220x160x110 mm
Weight	: 2kg nett
Box material	: Aluminium cast
Carrying case	: Soft case provided
Inbuilt Pump	:1.5 LPM suction of 8 Hg col

For MAP application only O2 & CO2 offered.

Typical sensors and ranges that may be used
Gas	Range	Resolution	Sensor type
Oxygen	0-25 %	0.1%	Electrochemical
Carbon Monoxide	0-200 ppM	1 ppM	Electrochemical
Hydrogen Sulphide	0-200 ppM	0.1 ppM	Electrochemical
Combustible gases	0-100% LEL	1 % LEL	Pellistor
Carbon Dioxide	0-5%	0.01%	Non Dispersive Infra Red
Freon R134A	0-2000ppM	1 ppM	Non Dispersive Infra Red
Other Gases & Ranges on request

Advanced Gas Detection Versatility

The SR 2012 analyser accommodates various gas detection needs with customizable sensor options and test ranges. Designed for on-site industrial monitoring, it adapts to different environments, supporting both manual and automatic control modes for efficient operation and safety.

Robust Data Management and Storage

Equipped with internal memory for up to 2000 records, the analyser allows for comprehensive data logging during prolonged field use. Its digital LCD display ensures clear readings, while standard USB and RS232 interfaces make downloading and managing data seamless.

Durability Meets Portability

Built with IP54 protection, the SR 2012 offers resistance to dust and water splashes. Lightweight at only 2 kg and ergonomically designed for handheld use, it suits demanding fieldwork and ensures easy handling during extended projects.

FAQ's of SR 2012-Portable Multigas Analyser:

Q: How does the SR 2012-Portable Multigas Analyser operate in different environments?

A: The analyser is designed with configurable sampling methods-diffusion or pump suction-allowing it to adapt to various field and industrial conditions, measuring multiple gases under atmospheric or specific test pressures and humidity levels ranging from 0 to 99% RH.

Q: What benefits does the internal memory provide for gas analysis?

A: The internal memory stores up to 2000 measurement records, enabling users to conduct detailed long-term monitoring and retrieve historical data efficiently for analysis or compliance purposes.

Q: When should calibration be performed on the SR 2012 Analyser?

A: Calibration can be done either by the user or at the factory as required. It is recommended to calibrate the analyser before initial use and periodically, depending on measurement frequency and regulatory protocols, to maintain optimal accuracy.

Q: Where can this multigas analyser be effectively utilized?

A: It is suitable for field detection in industrial sites, environmental monitoring locations, and automation control tasks. Its portability and rugged design allow use in diverse settings across India and beyond.

Q: What is the process for transferring measurement data from the device?

A: Users can connect the analyser to a computer using the available RS232 or USB interfaces, allowing for straightforward download and management of stored measurement records for further analysis or reporting.

Q: How long does the battery last and how is the device powered?

A: Powered by a 6V battery, the SR 2012 supports continuous operation for 8 to 12 hours, ensuring reliability during extended field measurements and industrial monitoring tasks.
