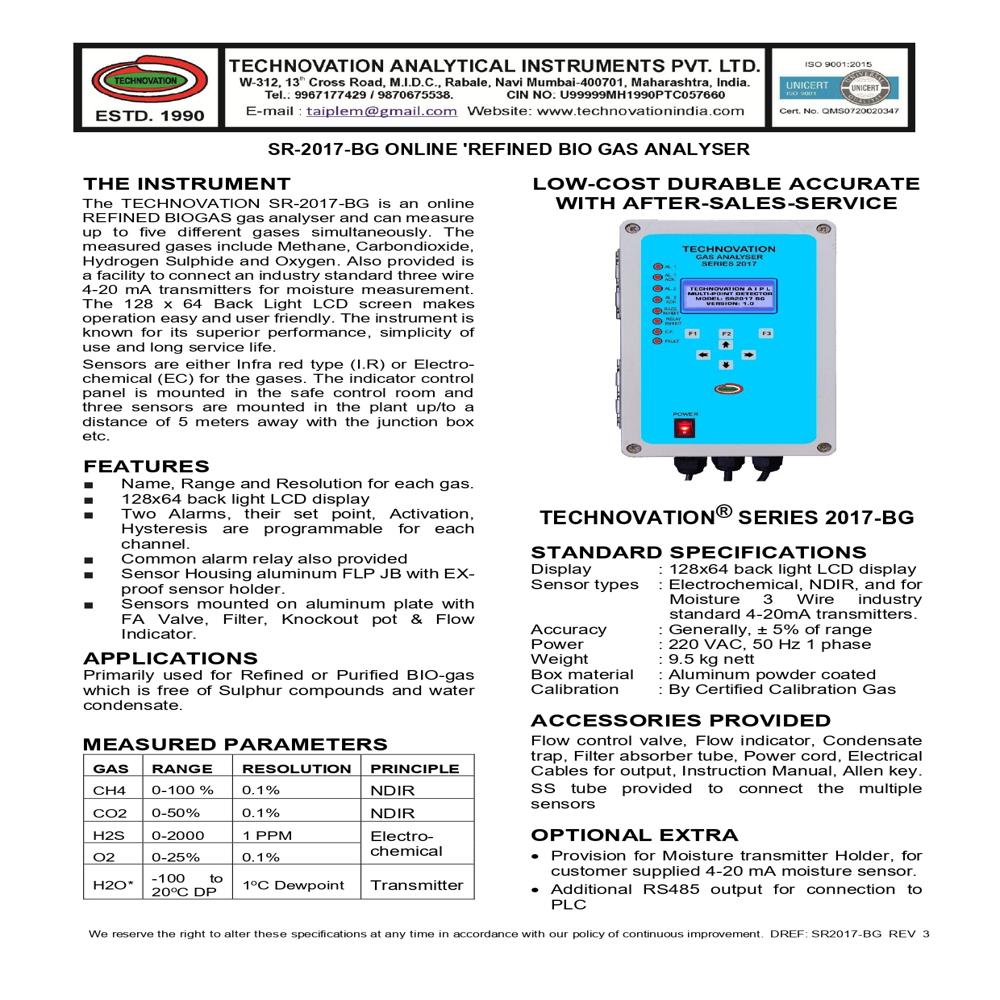

THE INSTRUMENT

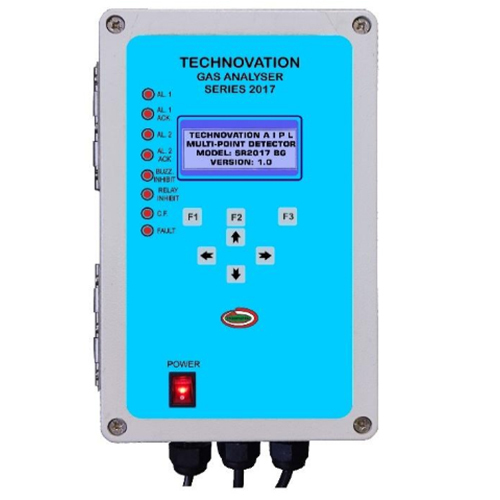

The TECHNOVATlON SR-2017-BG is an online   REFINED BIOGAS gas analyser and can measure up to five different gases simultaneously. The measured gases include Methane, Carbondioxide, Hydrogen Sulphide and Oxygen. Also provided is a facility to connect an industry standard three wire 4-20 mA transmitters for moisture measurement. The 128 x 64 Back Light LCD screen makes operation easy and user friendly. The instrument is known for its superior performance, simplicity of use and long service life.

Sensors are either Infra red type (I.R) or Electro-chemical (EC) for the gases. The indicator control panel is mounted in the safe control room and three sensors are mounted in the plant up/to a distance of 5 meters away with the junction box etc.

FEATURES

           Name, Range and Resolution for each gas.

           128x64 back light LCD display

           Two Alarms, their set point, Activation, Hysteresis are programmable for each channel.

           Common alarm relay also provided

           Sensor Housing aluminum FLP JB with EX-proof sensor holder.

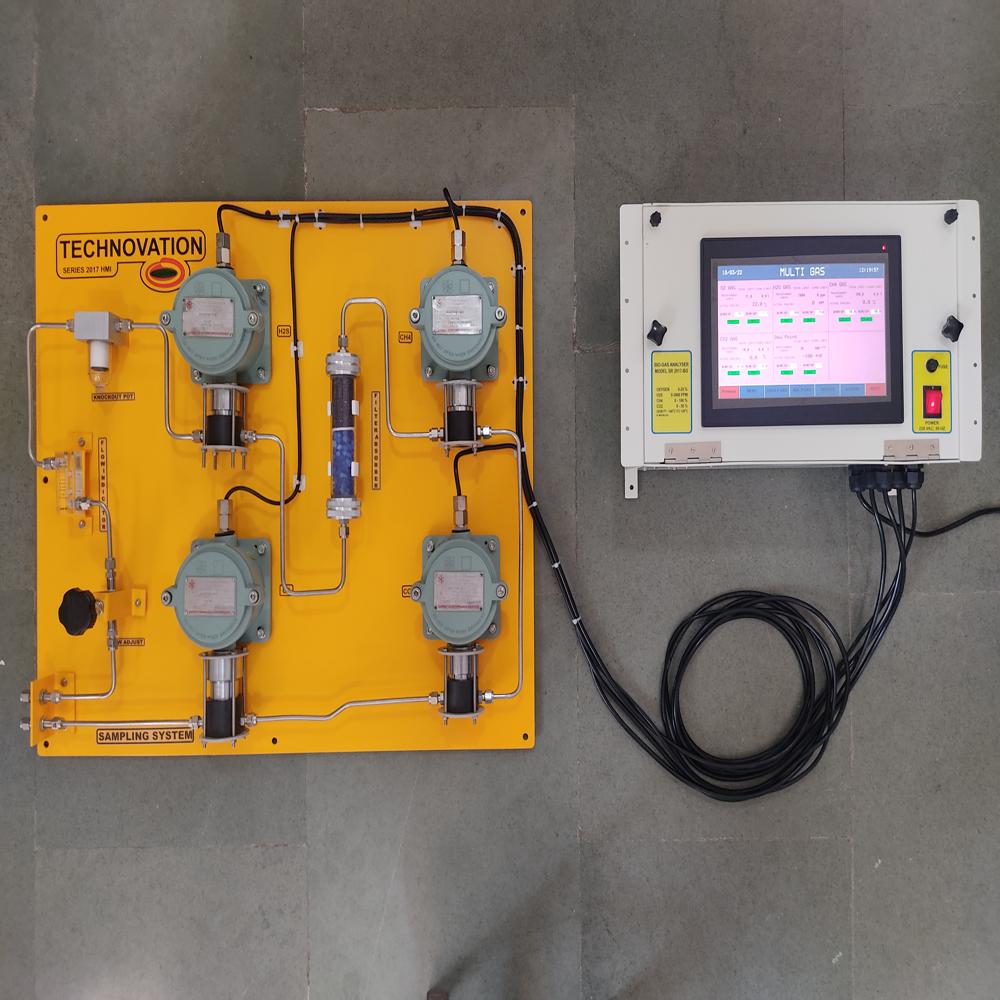

           Sensors mounted on aluminum plate with FA Valve, Filter, Knockout pot & Flow Indicator.

APPLICATIONS

Primarily used for Refined or Purified BIO-gas which is free of Sulphur compounds and water condensate.

STANDARD SPECIFICATIONS

Display             : 128x64 back light LCD display

Sensor types    : Electrochemical, NDIR, and for Moisture 3 Wire industry standard 4-20mA transmitters.

Accuracy          : Generally, 5% of range

Power               : 220 VAC, 50 Hz 1 phase

Weight              : 9.5 kg nett

Box material     : Aluminum powder coated

Calibration        : By Certified Calibration Gas
