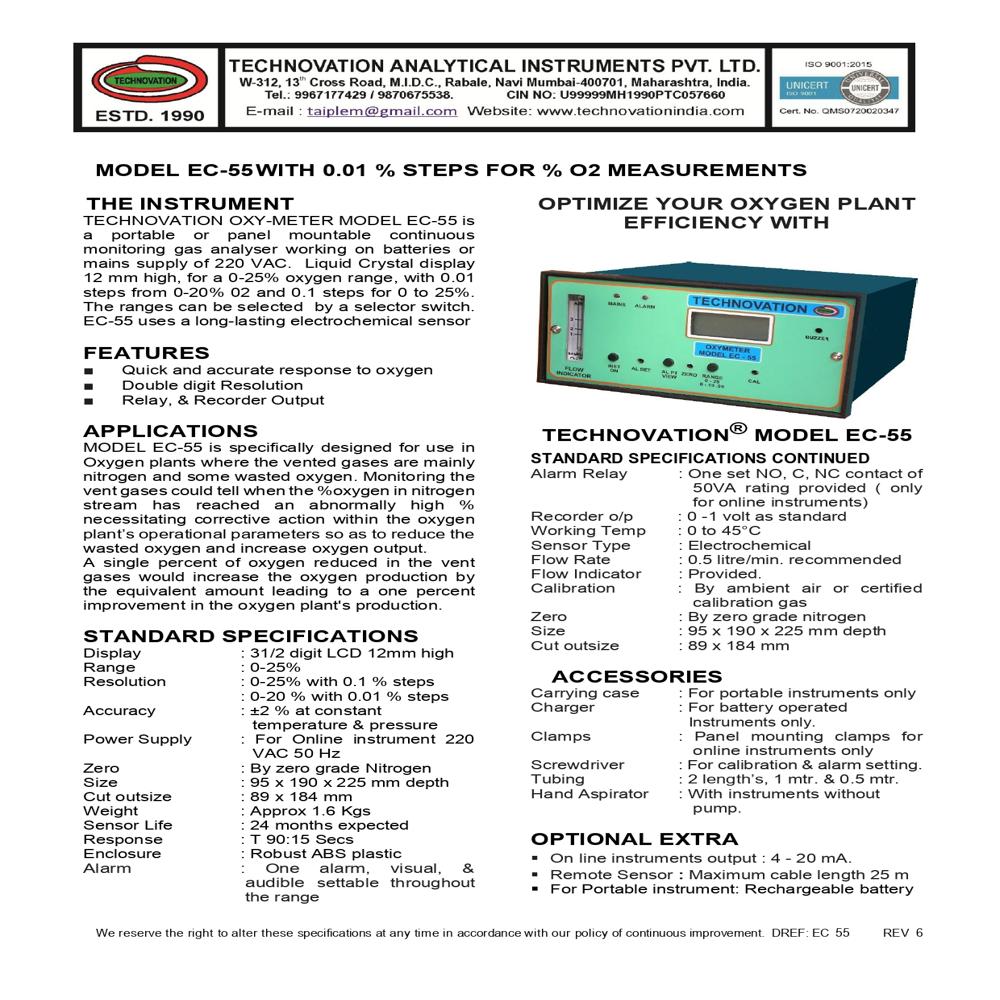

EC-55 Oxygen Analyzer

Get a Price/Quote

MOQ : 1 Piece

EC-55 Oxygen Analyzer Specification

Gas Pressure
atmospheric pressure +/- 10% kgf/cm2

Port Size
quarter inch nozzle

Dimension (L*W*H)
95*190*225 Inch (in)

Humidity
0-95% non condensing

Number of Specimens
unlimited

Test Range
0-25%

Power Supply
230 V AC

Temperature
0-50 Deg C Fahrenheit (oF)

Usage
Checking Nitrogen, Argon Purity

Machine Weight
1.6 Kilograms (kg)

Test Speed
30 sec

Control Mode
Automatic

About EC-55 Oxygen Analyzer

Oximeter Analyser is a lightweight, portable, and panel mountable oxygen analyzing instrument. This type of oxy-meter is widely used for non-stop monitoring of gases with the support of rechargeable batteries or mains power supply of 230V AC. It is particularly engineered for usage in Oxygen plants or systems where there vented gases are chiefly nitrogen as well as some other wasted oxygen. A digital display has 12mm high, for a 0% to 25% oxygen range along with 0.01 steps by a selector switch. The Oximeter Analyser is widely admired for instant and precise response to oxygen.

Features :

Quick and accurate response to oxygen
Double digit Resolution
Relay, Recorder Output

Efficient Gas Purity Testing

The EC-55 Oxygen Analyzer provides accurate and fast analysis, supporting a wide range of industrial applications. Its advanced sensor technology ensures reliability when measuring low oxygen concentrations, crucial for maintaining the integrity of high-purity nitrogen and argon.

Automatic Operation, Unlimited Testing

Featuring an automatic control mode and unlimited specimen capacity, the EC-55 streamlines laboratory workflows. The analyzers 30-second test speed allows for high-throughput analysis, maximizing productivity with minimal manual intervention.

Easy Integration and Operation

With a compact, lightweight build and user-friendly quarter-inch nozzle, the EC-55 is designed for convenience and compatibility across different setups. Its broad temperature and humidity tolerance further expand its usability in diverse environments.

FAQs of EC-55 Oxygen Analyzer:

Q: How is the EC-55 Oxygen Analyzer used to check nitrogen and argon purity?

A: To assess the purity of nitrogen or argon, simply connect the gas specimen to the analyzers quarter-inch nozzle. The device automatically measures oxygen content within 30 seconds, displaying results that indicate the presence of oxygen impurities in your sample.

Q: What is the process for operating the EC-55 Oxygen Analyzer?

A: The EC-55 operates via an automatic control mode. Once the sample is connected and the analyzer is powered (230 V AC), the instrument begins detecting oxygen concentration automatically. Results are provided in under 30 seconds without requiring manual calibration or intervention.

Q: When is it beneficial to use the EC-55 Oxygen Analyzer in industrial settings?

A: This analyzer is especially valuable when precise monitoring of gas purity is crucialsuch as in laboratory research, manufacturing, or gas supply verification. Its fast response time and unlimited specimen capacity support both routine checks and large-scale testing needs.

Q: Where can the EC-55 Oxygen Analyzer be installed or used?

A: Thanks to its compact dimensions and wide operating range for temperature and humidity, the EC-55 can be used in laboratories, production facilities, and quality control areas. Its design is suitable for both benchtop and field applications.

Q: What are the main benefits of using the EC-55 Oxygen Analyzer?

A: Users benefit from rapid, highly accurate oxygen measurement, unlimited sample throughput, easy integration into different gas setups, and a lightweight, portable form factor. These features collectively enhance quality control and gas purity verification processes.

Q: How does the EC-55 handle varying environmental conditions?

A: The EC-55 is designed to function effectively in temperatures ranging from 0 to 50C and humidity up to 95% (non-condensing), ensuring consistent performance even in challenging environments.
