Oxygen Analyzer

We have been involved in the process of manufacturing and supplying the world-class range of Oxygen Analyzers, which are panel mountable oxygen analyzing tools. Our products are light in weight and compact in design, and are available in various dimensions as per the requirement of clients. Some of the outstanding features of our offered range of Oxygen Analyzer are double digit crystal clear resolution, relay & recorder output and accurate response to oxygen readings. Our tools work with main power supply as well as with its rechargeable batteries, making it highly efficient. The analyzers are specifically designed for application in oxygen plants.

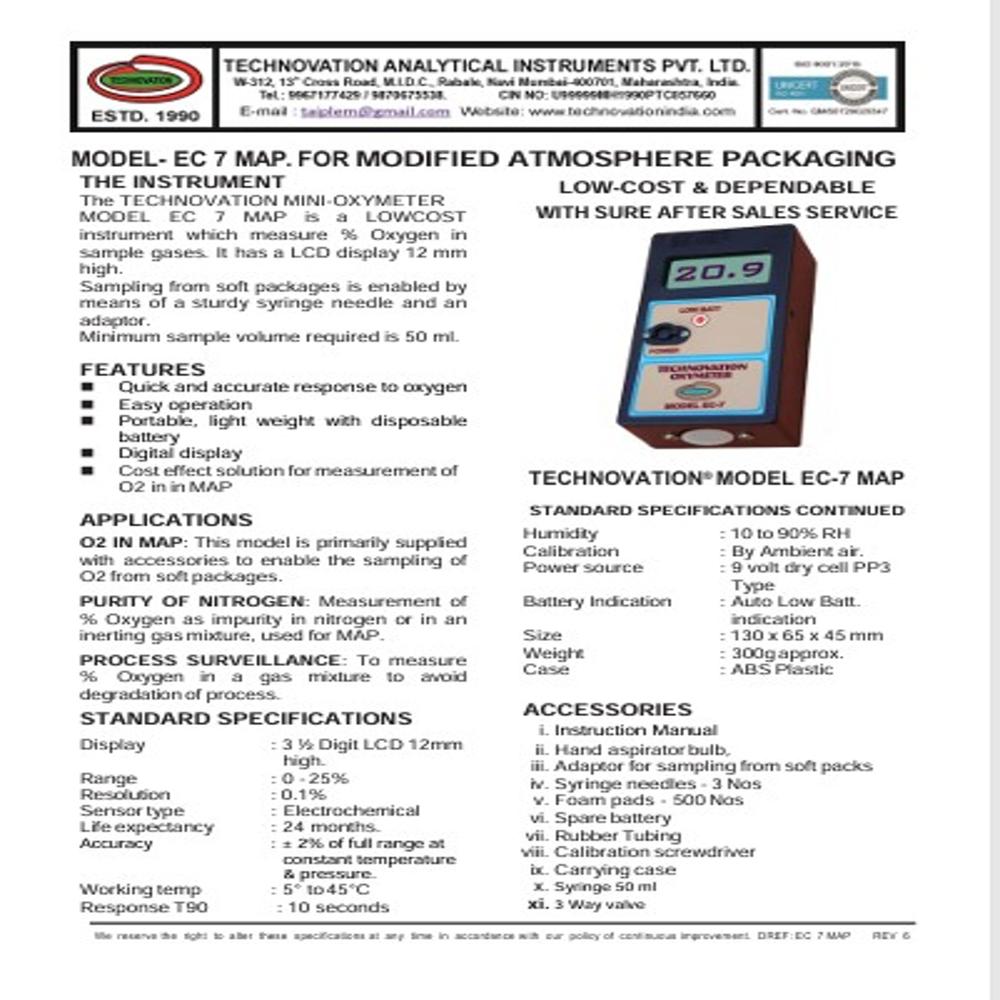

EC 7 MAP -MAP Analyzer (Food packet Testing Oxygen Meter)

Price 16400.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Application
Food Packet Testing

Color
Black

Dimension (L*W*H)
130*65*45 Millimeter (mm)

Display Type
nil

Equipment Materials
ABS Plastic

Features
Good Quality

Frequency
50-60 Hertz (HZ)

Hardness
Yes

Material
MS

Operate Method
Manual

Power
9 Volt (v)

Power Supply
Manual

Type
Other

Usage
Industrial

Voltage
110-215 Volt (v)

Warranty
1yr

Weight
300 Grams (g)

STANDARD SPECIFICATIONS Display : 3 Digit LCD 12mm high. Range : 0 - 25% Resolution : 0.1% Sensor type : Electrochemical Life expectancy : 24 months. Accuracy : ï 2% of full range at constant temperature & pressure. Working temp : 5 to 45C Response T90 : 10 seconds Humidity : 10 to 90% RH Calibration : By Ambient air. Power source : 9 volt dry cell PP3 Type Battery Indication : Auto Low Batt. indication Size : 130 x 65 x 45 mm Weight : 300g approx. Case : ABS Plastic

Know more

Oxygen Analyser

Price 24000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Piece

Equipment Type
Oxygen Online Analyser

Application
Continuous oxygen monitoring in industrial gases

Automation Grade
Automatic

Control Mode
Automatic

Dimension (L*W*H)
98*98*100 Centimeter (cm)

Display Type
Digital

Features
Real-time monitoring, high reliability, easy installation

Frequency
50/60 Hz Hertz (HZ)

Gas Pressure
0.1 - 0.3 MPa mpa

Humidity
0-95% RH (non-condensing)

Interface Type
RS485/4-20 mA

Machine Weight
1 Kilograms (kg)

Max Height
100 mm

Mounting Type
Panel Mount

Number of Specimens
1

Operating Voltage
220 VAC Volt (V)

Port Size
1/4 inch NPT

Power Supply
220 VAC

Resolution
0.01% O

Response Time
30 seconds Seconds

Temperature
-10C to 60C Celsius (oC)

Test Range
0-25% O

Usage
Online analyser

THE TECHNOVATION MODEL SP-5CZ OXYGEN ANALYZER is ïïP based and has a specially designed sampling configuration with an oxygen sensor at the end of a cable that makes it feasible to accurately measure Oxygen at a gas manifold while the instrument is panel mounted up to a distance of 10 meters away from the sensor. Calibration is accomplished conveniently by atmospheric air. FEATURES ï ïïP based , just three key operation. ï ZERO and CAL potentiometers provided ï 2 Alarm LEDs ï Confidence flash provided ï Low sample volume required ï Quick and accurate response to Oxygen ï Easy to operate by any person. ï Programmable Alarms configuration, Both alarms high OR one high and one low. Settable throughout the range ï Recorder output 0 - 1 V and 4 - 20mA
