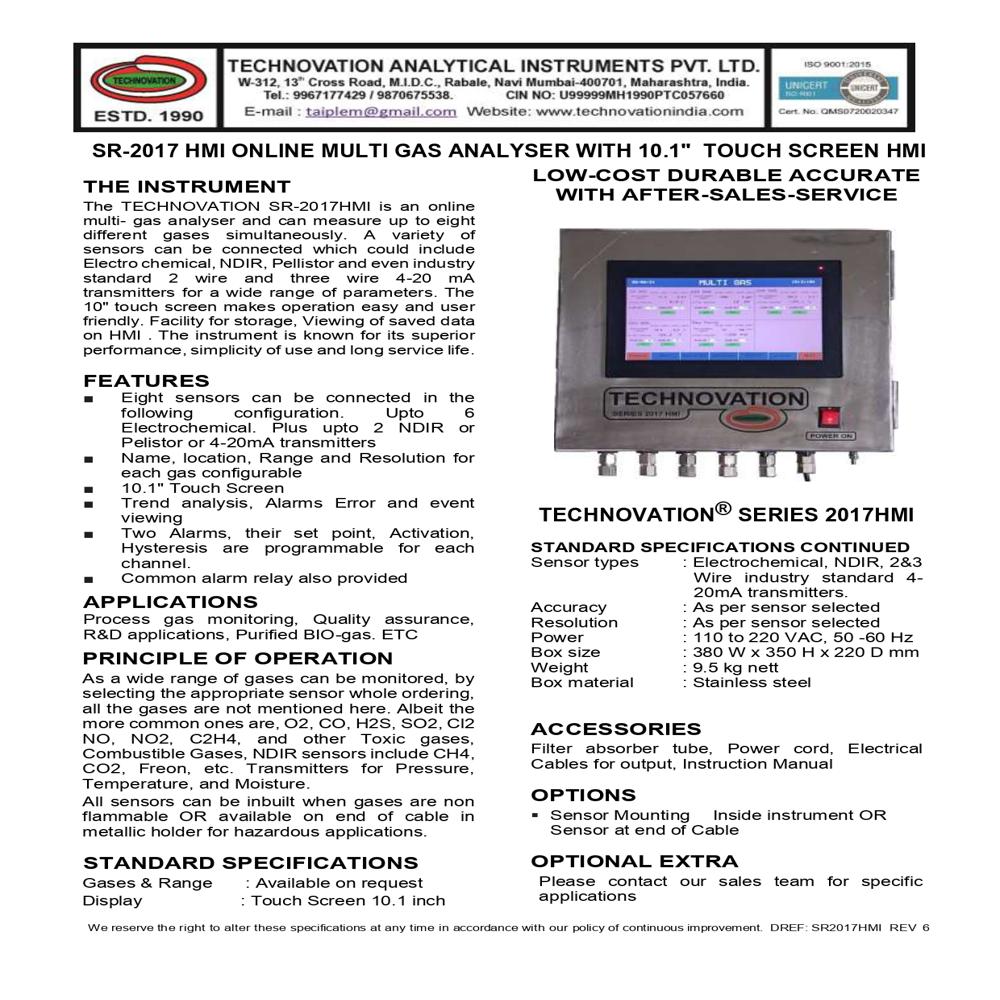

About SR 2017 (HMI)ONLINE MULTI GAS ANALYSER

THE INSTRUMENT

The TECHNOVATlON SR-2017HMI is an online   multi- gas analyser and can measure up to eight different gases simultaneously. A variety of sensors can be connected which could include Electro chemical, NDIR, Pellistor and even industry standard 2 wire and three wire 4-20 mA transmitters for a wide range of parameters. The 10" touch screen makes operation easy and user friendly. Facility for storage, Viewing of saved data  on HMI . The instrument is known for its superior performance, simplicity of use and long service life.

FEATURES

Eight sensors can be connected in the following configuration. Upto 6 Electrochemical. Plus upto 2 NDIR or Pelistor or 4-20mA transmitters            Name, location, Range and Resolution for each gas configurable            10.1" Touch Screen            Trend analysis, Alarms Error and event viewing            Two Alarms, their set point, Activation, Hysteresis are programmable for each channel.            Common alarm relay also provided

APPLICATIONS

Process gas monitoring, Quality assurance, R&D applications, Purified BIO-gas. ETC

PRINCIPLE OF OPERATION

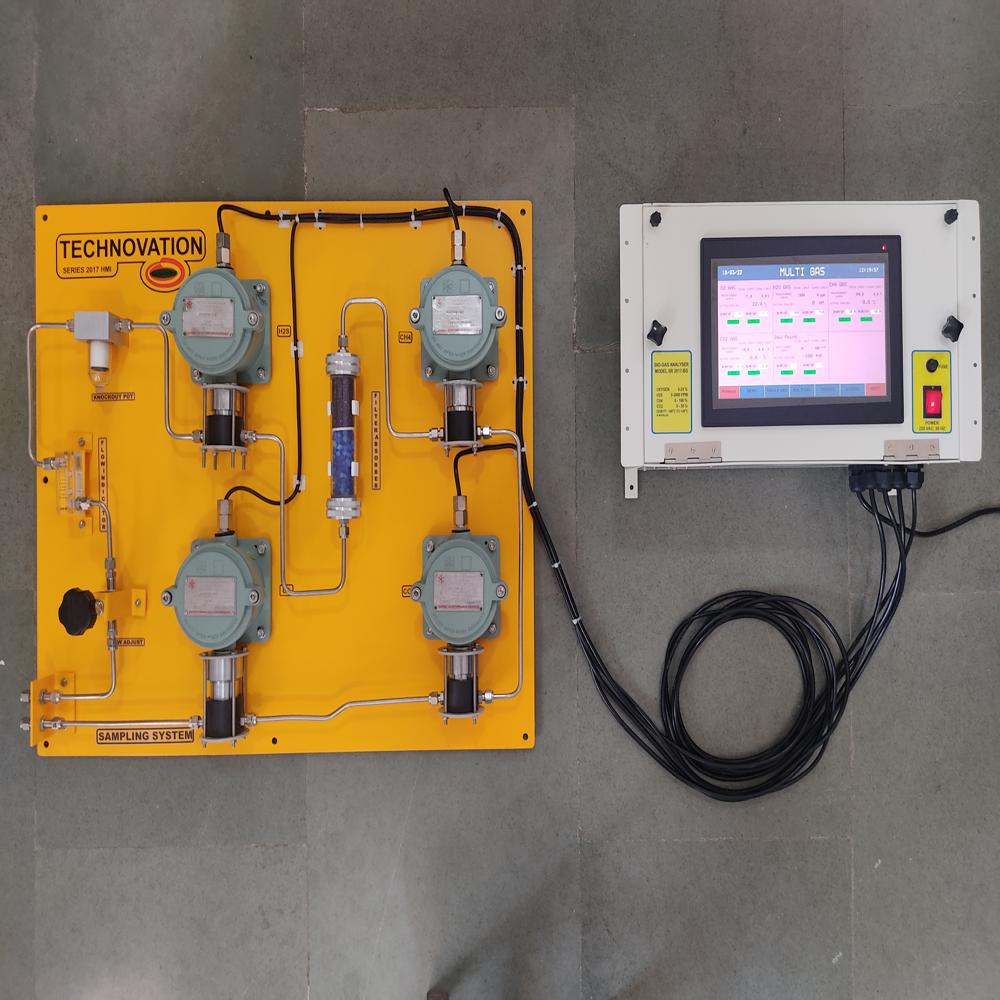

As a wide range of gases can be monitored, by selecting the appropriate sensor whole ordering, all the gases are not mentioned here. Albeit the more common ones are, O2, CO, H2S, SO2, Cl2 NO, NO2, C2H4, and other Toxic gases, Combustible Gases, NDIR sensors include CH4, CO2, Freon, etc. Transmitters for Pressure, Temperature, and Moisture. All sensors can be inbuilt when gases are non flammable OR available on end of cable in metallic holder for hazardous applications.

STANDARD SPECIFICATIONS

Gases & Range       : Available on request Display                    : Touch Screen 10.1 inch

STANDARD SPECIFICATIONS CONTINUED Sensor types         : Electrochemical, NDIR, 2&3 Wire industry standard 4-20mA transmitters. Accuracy              : As per sensor selected Resolution             : As per sensor selected Power                    : 110 to 220 VAC, 50 -60 Hz Box size                 : 380 W x 350 H x 220 D mm Weight                   : 9.5 kg nett Box material          : Stainless steel

Advanced Industrial Gas Analysis

The SR 2017 (HMI) ONLINE MULTI GAS ANALYSER delivers precise multi-gas monitoring crucial for industrial operations. Integrated with high-quality sensors and a digital control mode, this analyzer ensures ongoing, reliable data capture and analysis for various gases.


Automatic Operation and Digital Control

Featuring an automatic operation with digital control, the analyser minimizes manual intervention while maximizing efficiency. Users benefit from streamlined processes, heightened safety, and error reduction, making it an indispensable asset for automated industrial setups.


Compact and Durable Design

Despite its compact dimensions (220x160x110 mm) and lightweight design, the SR 2017 is built for durability. Its hard structure and quality materials ensure it withstands challenging industrial environments, resulting in reduced maintenance and prolonged lifespan.
