THE INSTRUMENT

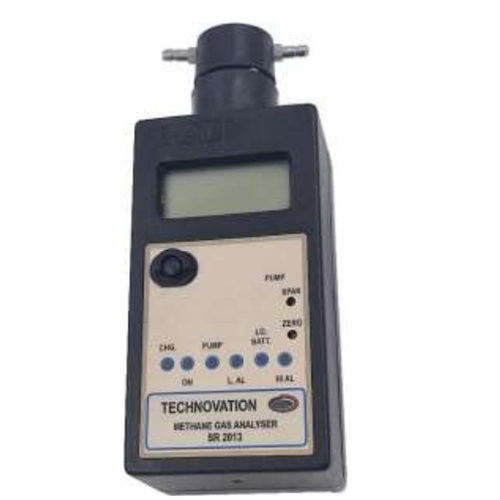

The TECHNOVATION. SR-2013 NDIR ANALYSER is a SINGLE GAS portable, easy-to-use, compact, durable, GAS ANALYSER with choices of RANGES and GASES as indicated in table below. Sensor is in diffusion mode. Two settable alarms both visual & audible are provided. The instrument optionally has a neck-strap or belt-clip hanger for hands-free operation. Two alarms both visual & audible are provided.

FEATURES

              Long life NDIR detectors

              Rechargeable battery as standard power option

              Light weight, compact, durable and rugged.

              Two alarms and low battery alarm

              Digital readout of % of gas

              Easy to use and simple in operation

APPLICATIONS

These analysers are used for process parameter gas concentration measurement, safety purposes before starting any hot work in a work area, also before man entry into an enclosed space or any area likely to have undesirable gases. They may also be used for leak detection

STANDARD SPECIFICATIONS

Detection Principle     : Non - Dispersive Infra Red.       ( NDIR ) .

Ranges & Resolution  : As per table below

Display                      : 31/2 digits 12 mm high.

Accuracy                   : 5% of full scale readings.

Sensor Response       : 15 secs (T 90)

Operating Temp         : 5C to 45C

Power                        : 7.2 volts Ni/Cd battery-pack

Low-Batt Indication     : Automatic, both visual & audible

Sampling                   :
By diffusion or hand aspiration

Inst. Housing              : ABS antistatic, with belt clip.

Size                           :
13 H x 7 W x 4.5 cm approx

Environment               : Safe areas only

.
