Multi gas Analyser

Name: SR 2016-Portable (Multigas) Gas Analyzer
Brand: Technovation Analytical Instruments Pvt. Ltd.
Price: 34500.0 INR
Availability: InStock

Price 34500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Multi gas Analyser Specification

Power Supply
Rechargeable Batteries

Material
Mild Steel

Dimension (L*W*H)
26*14*10 Centimeter (cm)

Features
Accurate

Color
Orange

Weight
1.8 Kilograms (kg)

Product Type
Portable Gas Analyzer

Port Size
Standard

Mounting Type
Free Stand

Application
Laboratory

Response Time
20 Seconds

Usage
Laboratory

Machine Weight
1.8 Kilograms (kg)

Multi gas Analyser Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Week

Delivery Time
7 Days

Main Domestic Market
All India

Certifications
Available

About Multi gas Analyser

Discover the trending SR 2016-Portable (Multigas) Gas Analyzer-an eminent choice for industrial and laboratory professionals. Highly praised in favorable reviews, this splendiferous analyzer delivers ineffable accuracy across a spectrum of gases including O2, CO, SO2, NO2, and more. Weighing just 1.8 kg and constructed from mild steel, its vivid orange color and free-standing design make it perfect for versatile environments. Rechargeable batteries, rapid 20-second response, and robust data storage enhance reliability. Elevate your testing and measurement standards; purchase confidently from India's premier exporter and supplier.

Primary Competitive Advantages and Features

The SR 2016-Portable (Multigas) Gas Analyzer stands out with its ability to measure up to six gases using advanced electrochemical and NDIR/Pellistor sensors. Its graphic trend analysis, STEL/TWA calculations, and auto power-off safeguard precise operations. Ideal for quality control, process management, and workplace safety, it supports instant, continuous, and user-configured sampling modes. Additionally, stored data is effortlessly downloadable via USB, ensuring seamless integration into laboratory and industrial workflows.

Supply Ability, Export Markets, and Packaging

SR 2016-Portable (Multigas) Gas Analyzer is available for prompt dispatch upon purchase order. With established export capabilities and a robust supply chain, orders from Asia and overseas markets are processed efficiently, ensuring timely delivery. The analyzers are securely packaged in sturdy containers, minimizing freight risks during shipment. Order processing is streamlined to guarantee swift turnover, catering to laboratory and industrial clients requiring reliable, top-tier gas analysis solutions worldwide.

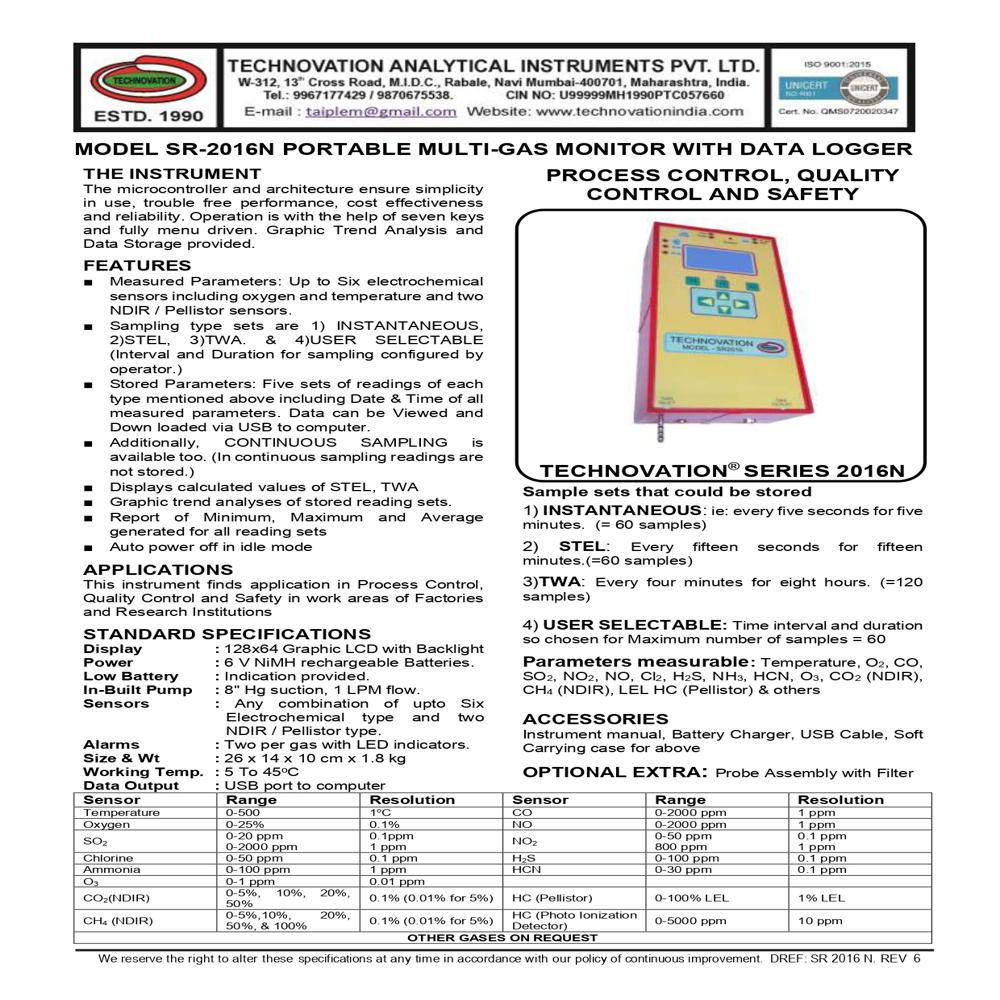

THE INSTRUMENT

The microcontroller and architecture ensure simplicity in use, trouble free performance, cost effectiveness and reliability. Operation is with the help of seven keys and fully menu driven. Graphic Trend Analysis and Data Storage provided.

FEATURES

Measured Parameters: Up to Six electrochemical sensors including oxygen and temperature and two NDIR / Pellistor sensors.

Sampling type sets are 1) INSTANTANEOUS, 2)STEL, 3)TWA. & 4)USER SELECTABLE (Interval and Duration for sampling configured by operator.)

Stored Parameters: Five sets of readings of each type mentioned above including Date & Time of all measured parameters. Data can be Viewed and Down loaded via USB to computer.

Additionally, CONTINUOUS SAMPLING is available too. (In continuous sampling readings are not stored.)

Displays calculated values of STEL, TWA

Graphic trend analyses of stored reading sets.

Report of Minimum, Maximum and Average generated for all reading sets

Auto power off in idle mode

APPLICATIONS

This instrument finds application in Process Control, Quality Control and Safety in work areas of Factories and Research Institutions

STANDARD SPECIFICATIONS

Display : 128x64 Graphic LCD with Backlight

Power : 6 V NiMH rechargeable Batteries.

Low Battery : Indication provided.

In-Built Pump : 8" Hg suction, 1 LPM flow.

Sensors : Any combination of upto Six Electrochemical type and two NDIR / Pellistor type.

Alarms : Two per gas with LED indicators.

Size & Wt : 26 x 14 x 10 cm x 1.8 kg

Working Temp. : 5 To 45^oC

Data Output : USB port to computer

Sample sets that could be stored

1) INSTANTANEOUS: ie: every five seconds for five minutes. (= 60 samples)

2) STEL: Every fifteen seconds for fifteen minutes.(=60 samples)

3)TWA: Every four minutes for eight hours. (=120 samples)

4) USER SELECTABLE: Time interval and duration so chosen for Maximum number of samples = 60

Parameters measurable: Temperature, O₂, CO, SO₂, NO₂, NO, Cl₂, H₂S, NH₃, HCN, O₃, CO₂ (NDIR), CH₄ (NDIR), LEL HC (Pellistor) & others

Sensor	Range	Resolution	Sensor	Range	Resolution
Temperature	0-500	1^oC	CO	0-2000 ppm	1 ppm
Oxygen	0-25%	0.1%	NO	0-2000 ppm	1 ppm
SO₂	0-20 ppm 0-2000 ppm	0.1ppm 1 ppm	NO₂	0-50 ppm 800 ppm	0.1 ppm 1 ppm
Chlorine	0-50 ppm	0.1 ppm	H₂S	0-100 ppm	0.1 ppm
Ammonia	0-100 ppm	1 ppm	HCN	0-30 ppm	0.1 ppm
O₃	0-1 ppm	0.01 ppm
CO₂(NDIR)	0-5%, 10%, 20%, 50%	0.1% (0.01% for 5%)	HC (Pellistor)	0-100% LEL	1% LEL
CH₄ (NDIR)	0-5%,10%, 20%, 50%, & 100%	0.1% (0.01% for 5%)	HC (Photo Ionization Detector)	0-5000 ppm	10 ppm
OTHER GASES ON REQUEST

FAQ's of SR 2016-Portable (Multigas) Gas Analyzer:

Q: How does the SR 2016-Portable Gas Analyzer support laboratory and industrial use?

A: The SR 2016-Portable is engineered for high accuracy, fast response, and versatile mounting, making it suitable for laboratory experiments, industrial safety monitoring, and process control. Its rechargeable batteries and lightweight design add to its portability.

Q: What primary gases can the SR 2016-Portable Gas Analyzer detect?

A: This analyzer can measure a wide range of parameters, including temperature, O2, CO, SO2, NO2, NH3, CH4, HCN, CO2, LEL HC, and more using up to six electrochemical and two NDIR/Pellistor sensors.

Q: When can I expect order fulfillment and delivery after placing a purchase order?

A: Order processing commences immediately upon receiving a purchase order, with timely freight arrangements and export procedures ensuring swift delivery to domestic or international locations.

Q: Where are SR 2016-Portable Gas Analyzers exported, and who can order them?

A: These units are exported globally, with major markets in Asia and overseas. Manufacturers, suppliers, research institutions, and industrial facilities are welcome to place orders.

Q: What process does the SR 2016-Portable use for data storage and analysis?

A: The analyzer stores multiple sets of readings-including instantaneous, STEL, TWA, and user-selectable samples-complete with date and time. Users can download or review stored data through USB for trend analysis and report generation.

Q: How does continuous and user-selectable sampling benefit the end user?

A: Continuous sampling allows real-time monitoring, while user-selectable intervals support customized analysis based on specific requirements. Both options provide flexibility and detailed insight for process control or safety compliance.
